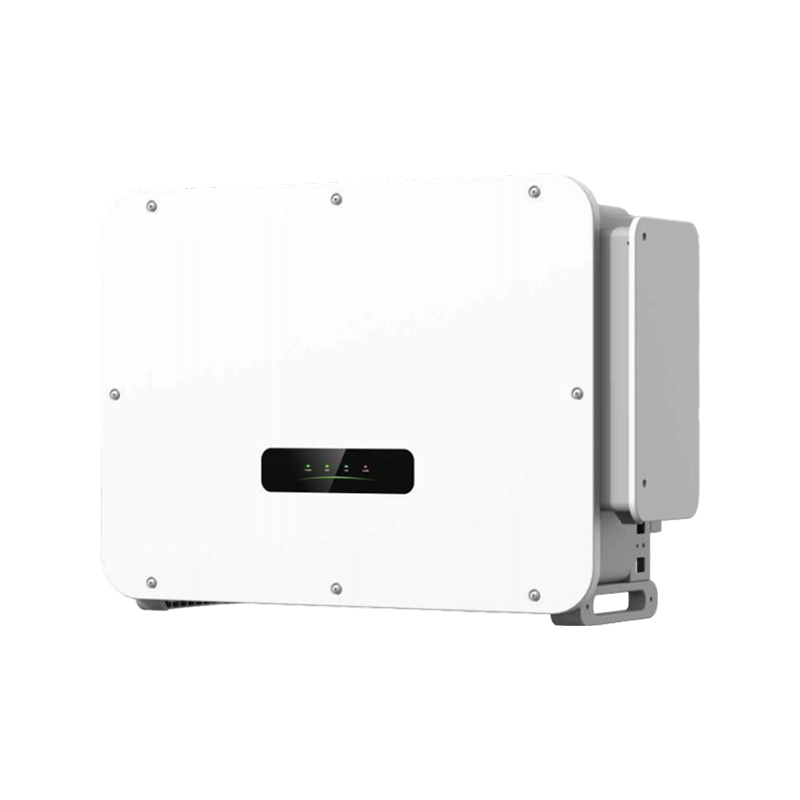

Three-Phase String Inverter

The HYX-S100K/110K/120K-T is a three-phase string inverter suitable for commercial, industrial, and large-scale ground-mounted photovoltaic power plants. Available in 100kW, 110kW, and 120kW power models, the series supports multiple MPPT inputs, flexibly adapting to complex installation environments and shadowed conditions. With a maximum efficiency of 98.8%, it maintains high efficiency over a wide voltage range and supports bifacial module access, effectively increasing system power generation. It features built-in intelligent PID protection and repair functions, supports remote monitoring and fault diagnosis, and integrates AFCI arc protection. With an IP66 protection rating, it is suitable for outdoor installation and operates stably in ambient temperatures ranging from -30°C to 60°C.

PREV：Three-Phase String Inverter NEXT：Three-Phase String Inverter

Product Parameters

Specification	HYX-S100K-T	HYX-S110K-T	HYX-S120K-T
DC Input
Maximum Input Voltage	1,100V
Rated Input Voltage	600V
Startup Voltage	160V
MPPT Operating Voltage Range	140～1,000V
Max. Input Current per MPPT Channel	40A
Max. Input Current per String	20A
Maximum Input Short-Circuit Current	50A
Number of MPPT	10
Number of Input Strings	20
AC Output
Rated Output Power	100kW	110kW	120kW
Maximum Apparent Power	111kVA	121kVA	132kVA
Rated Output Voltage	220V/380V, 230V/400V, 3L/N/PE
Rated Output Frequency	50Hz/60Hz
Rated Output Current	151.9A	167.2A	182.3A
Maximum Output Current	167.2A	185.7A	190.5A
Power Factor	>0.99 (Default) / 0.8 Leading ... 0.8 Lagging
Total Harmonic Distortion (at Linear Load)	<3%
Conversion Efficiency
Maximum Efficiency	98.80%
European Efficiency	98.40%
MPPT Efficiency	99.90%
Protection Information
DC Reverse Polarity Protection	Yes
DC Switch	Yes
DC Bus Overvoltage Protection	Yes
DC Overcurrent Protection	Yes
AC Short-Circuit Protection	Yes
AC Overvoltage Protection	Yes
AC Overcurrent Protection	Yes
AC Over/Undervoltage Protection	Yes
DC Surge Protection	Class II
AC Surge Protection	Class II
Anti-Islanding Protection	Yes
AFCI (Arc Fault Circuit Interrupter)	Yes
PID (Potential Induced Degradation) Restoration	Optional
Basic Information
Operating Temperature	-30～+60℃
Relative Humidity	0～100% RH
Maximum Altitude	4,000m
Cooling Method	Intelligent Air Cooling
Human-Machine Interaction	LED Indicators; WLAN+App
Communication Method	RS485/4G/WIFI/HPLC
Weight	94kg
Dimensions (WHD)	1000730375mm
Inverter Topology	Transformerless
Protection Degree (IP Rating)	IP66
Overvoltage Category	PVI/ACⅢ
