Three-Phase String Inverter

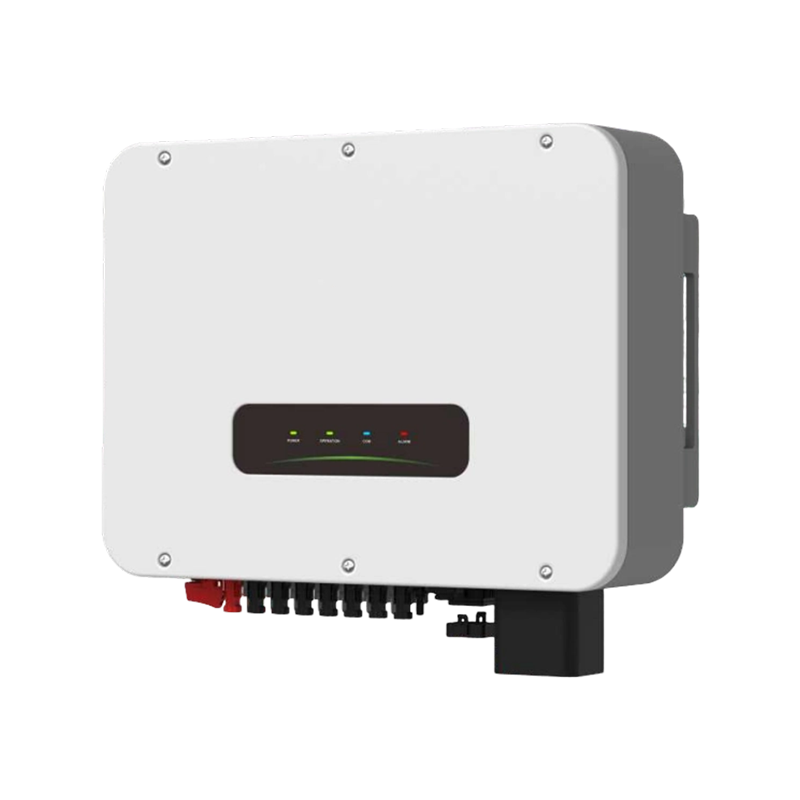

The HYX-S30K/33K/36K/40K/50K-T is a three-phase string PV inverter suitable for commercial, industrial, and ground-mounted power plant applications. This series offers a power range of 30kW to 50kW, adapting to PV system configurations of varying sizes. Its maximum conversion efficiency reaches 98.7%, and it supports multiple MPPT inputs, effectively minimizing power loss caused by shading. It features a high current input capability of 12.5A, compatible with high-power modules. Built-in intelligent I-V curve diagnostics support remote operation and maintenance, as well as fault monitoring. With an IP66 protection rating, it operates reliably in outdoor environments. It supports multiple communication methods, including RS485, WiFi, and 4G, facilitating integration into power plant management systems. Its DC voltage reaches up to 1100V, and its three-phase AC output is suitable for 380V/400V power grids.

PREV：Three-Phase String Inverter NEXT：Three-Phase String Inverter

Product Parameters

Specification	HYX-S30K-T	HYX-S33K-T	HYX-S36K-T	HYX-S40K-T	HYX-S50K-T
DC Input
Maximum Input Power	48kW	52.8kW	57.6kW	64kW	80kW
Maximum Input Voltage	1,100V
Rated Input Voltage	600V
Startup Voltage	160V
MPPT Operating Voltage Range	140-1,000V
Maximum Input Current per MPPT Channel	40A
Maximum Input Current per String	20A
Maximum Input Short-Circuit Current	50A
Number of MPPT Channels	3	3	3	4	4
Allowed Strings per MPPT Channel	2/2/2	2/2/2	2/2/2	2/2/2	2/2/2
AC Output
Rated Output Power	30kW	33kW	36kW	40kW	50kW
Maximum Apparent Power	33kVA	36.3kVA	39.6kVA	44kVA	55kVA
Rated Output Voltage	220V/380V, 230V/400V, 3L/N/PE
Rated Output Frequency	50Hz, 60Hz
Rated Output Current	45.6A	50.2A	54.7A	60.8A	76.0A
Maximum Output Current	50.2A	55.2A	60.2A	66.9A	83.6A
Power Factor	>0.99 (default) / 0.8 leading ... 0.8 lagging
Total Harmonic Distortion (at linear load)	<3%
Conversion Efficiency
Maximum Efficiency	98.60%
European Efficiency	98.10%
MPPT Efficiency	99.90%
Protection Information
DC Reverse Polarity Protection	Yes
DC Switch	Yes
DC Bus Overvoltage Protection	Yes
DC Overcurrent Protection	Yes
AC Short-Circuit Protection	Yes
AC Overvoltage Protection	Yes
AC Overcurrent Protection	Yes
AC Over/Undervoltage Protection	Yes
DC Surge Protection	Class II
AC Surge Protection	Class II
Anti-Islanding Protection	Yes
AFCI (Arc Fault Circuit Interrupter)	Yes
PID Restoration	Optional
Basic Information
Operating Temperature	-30～+60℃
Relative Humidity	0～100 %RH
Maximum Altitude	4,000m
Cooling Method	Intelligent Air Cooling
Human-Machine Interaction	LED Indicator; WLAN+App
Communication Method	RS485/4G/WIFI/HPLC
Weight	44kg
Dimensions (WHD)	615460268.5mm
Inverter Topology	Transformerless
Protection Degree	IP66
Overvoltage Category	PVI/ACⅢ
Matching Optimizer Type	HYX-OP700
