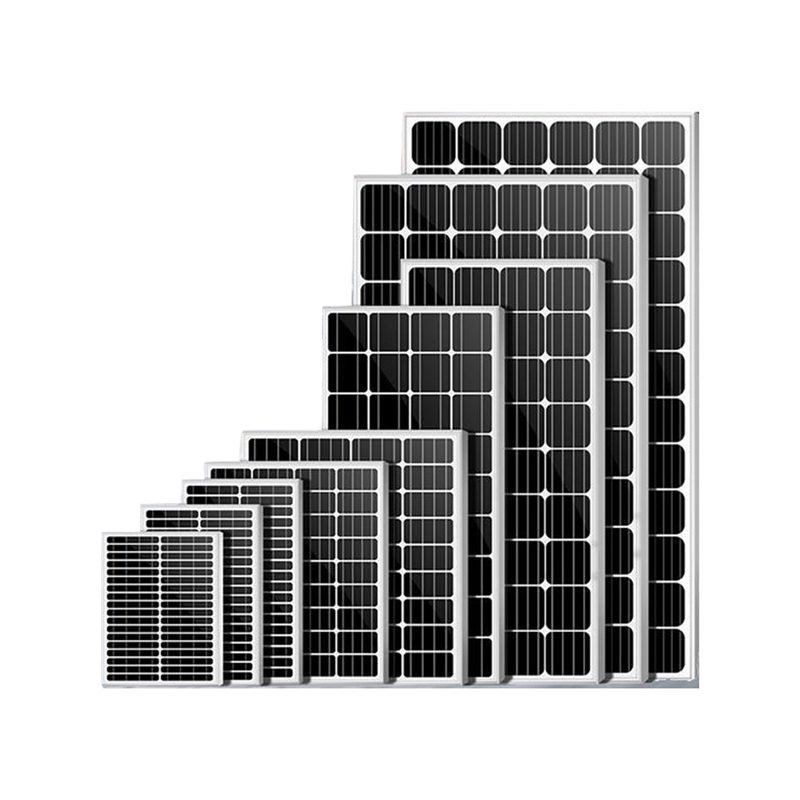

180W single crystal solar panel -- 152058030mm

The 180W monocrystalline solar panel utilizes high-purity monocrystalline silicon wafers, achieving high photovoltaic conversion efficiency. With standard dimensions of 1520×580×30 mm, the compact design makes it suitable for installation in limited spaces. The panel is covered with high-transmittance, low-iron tempered glass, enhancing light absorption and mechanical strength. A weather-resistant EVA encapsulation layer combined with a waterproof backsheet ensures long-term stability in a variety of environmental conditions.

The aluminum alloy frame design provides structural support and facilitates installation, meeting the requirements of conventional mounting systems. It can be widely used in distributed photovoltaic systems, off-grid power generation, and outdoor energy solutions. Its operating voltage and current meet general electrical standards and are compatible with mainstream controllers and inverters.

PREV：200W Single Crystal Solar Panel -- 1530*670*30mm NEXT：160W single crystal solar panel -- 1230*670*30mm

Product Parameters

Model	SZ-180-M
Rated power	180W
Maximum power current	6.47A
Maximum power voltage	27.84V
Open-circuit voltage	32.64V
Short-circuit current	6.86A
Maximum system voltage	500V
Output tolerance	0~+3%
Cable (MC4)	700mm/2.5mm²
Rated value of junction box	≥IP67
Solar cell	18291--163
Operating temperature	-40~+85℃
Module size	152058030mm
Weight (net weight/gross weight)	8.8/10.2kg
