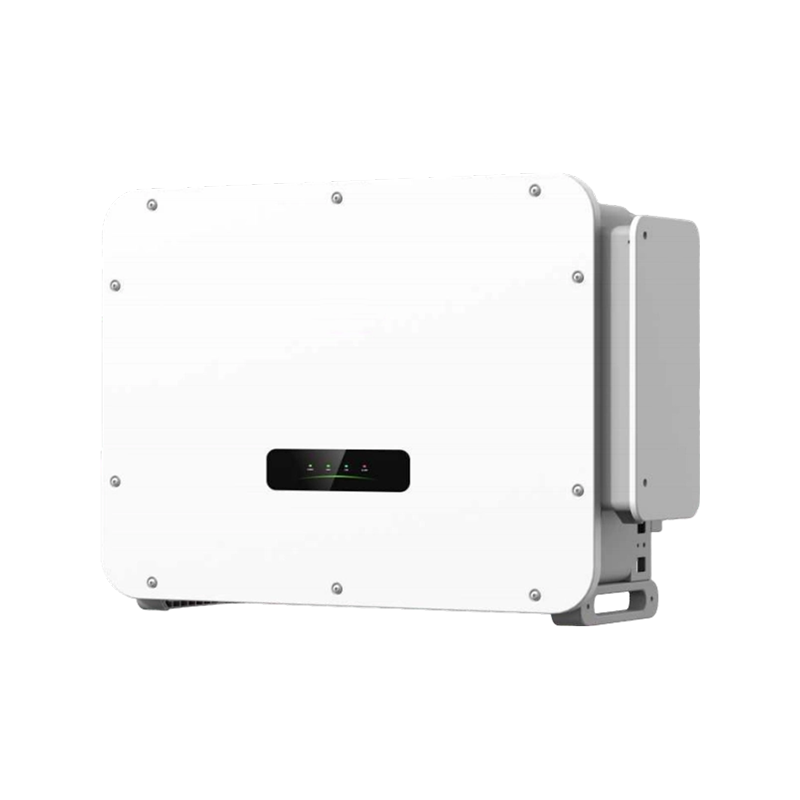

Three-Phase String Inverter

The HYX-S320K-HT is a three-phase string inverter with a rated output power of 320kW, suitable for industrial, commercial, and large-scale ground-mounted PV power plants. It supports multiple MPPT inputs, effectively reducing power generation losses caused by partial shading or string mismatch. It boasts a maximum efficiency of 98.8% and a wide DC input voltage range, making it compatible with high-power PV modules. It supports intelligent IV curve scanning and fault diagnosis, facilitating system maintenance and real-time monitoring. A built-in PID protection and repair module helps extend module life. Communication options include RS485 and Ethernet, allowing integration into power plant monitoring systems. With an IP66 protection rating, it is suitable for outdoor installation.

PREV：Solis-(100-110)K-5G Solis Three Phase Inverters NEXT：Three-Phase String Inverter

Product Parameters

Specification	Parameter
DC Input
Maximum Input Voltage	1,500V
Rated Input Voltage	1,080V
Startup Voltage	500V
MPPT Operating Voltage Range	480～1,500V
Maximum Input Current per MPPT Channel	72A, 75A	75A
Maximum Input Short-Circuit Current	120A
Number of MPPT	6
Number of Input Strings	24, 30	30
AC Output
Rated Output Power	320kW
Maximum Apparent Power	352kVA
Rated Output Voltage	800V, 3L/PE
Rated Output Frequency	50Hz/60Hz
Rated Output Current	230.9A
Maximum Output Current	254A
Power Factor	>0.99 (Default) / 0.8 Leading ... 0.8 Lagging
Total Harmonic Distortion (at Linear Load)	<3%
Conversion Efficiency
Maximum Efficiency	≥99.03%
Chinese Efficiency	≥98.52%
MPPT Efficiency	99.90%
Protection Information
DC Reverse Polarity Protection	Yes
DC Switch	Yes
DC Bus Overvoltage Protection	Yes
DC Overcurrent Protection	Yes
AC Overvoltage Protection	Yes
AC Overcurrent Protection	Yes
AC Over/Undervoltage Protection	Yes
DC Surge Protection	Class II
AC Surge Protection	Class II
Night Reactive Power Compensation	Yes
Anti-Islanding Protection	Yes
Intelligent String Segmentation	Yes
Intelligent Terminal Detection	Yes
Basic Information
Operating Temperature	-35～+60℃
Relative Humidity	0~100% RH
Maximum Altitude	5,000m
Cooling Method	Intelligent Forced Air Cooling
Human-Machine Interaction	LED Indicators; WLAN+App
Communication Method	RS485/HPLC
Weight	120kg
Dimensions (WHD)	1048732395mm
Inverter Topology	Transformerless
Protection Degree (IP Rating)	IP66
Overvoltage Category	PVI/ACⅢ
