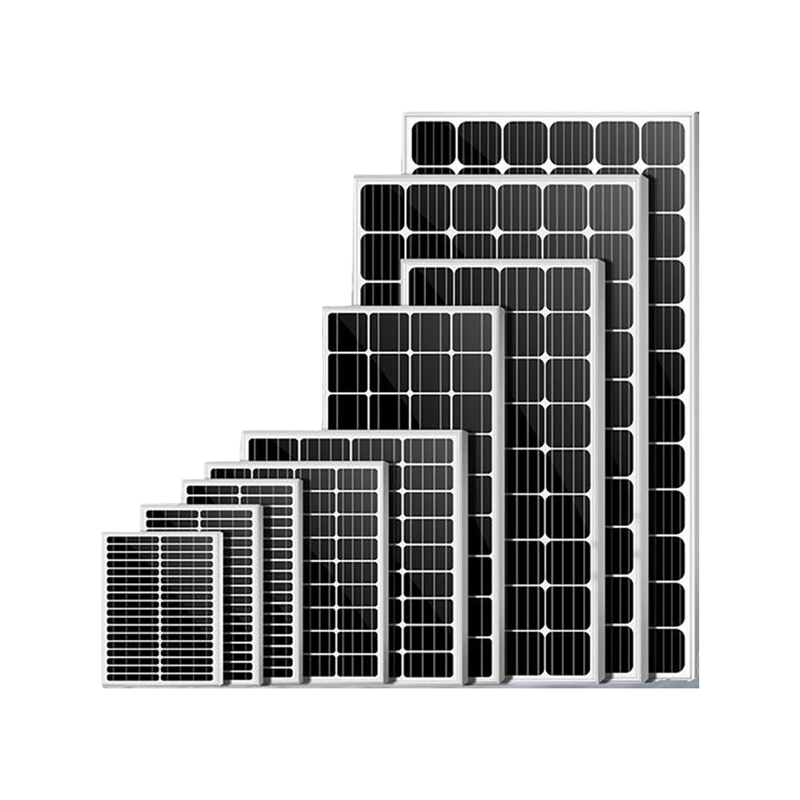

240W Single Crystal Solar Panel -- 152076030mm

The 240W monocrystalline solar panel utilizes high-purity monocrystalline silicon wafers, achieving high photovoltaic conversion efficiency. Measuring 1520mm × 760mm × 30mm, the panel features a compact design for easy installation and integration. The panel is covered with high-transmittance, low-iron tempered glass, enhancing light absorption and mechanical strength. The aluminum alloy frame enhances durability and adaptability to a wide range of outdoor conditions.

The panel operates over a wide voltage range and is compatible with mainstream inverter specifications, making it suitable for a wide range of applications in distributed photovoltaic systems, rooftop power plants, and small commercial power generation projects. Its junction box is IP67-rated, ensuring stable operation in humid and dusty environments. The panel has passed standard PID (Potential Induced Degradation) testing, effectively reducing potential-induced degradation and ensuring long-term power generation performance.

PREV：20W Single Crystal Solar Panel NEXT：200W Single Crystal Solar Panel -- 1530*670*30mm

Product Parameters

Model	SZ-240-M
Rated power	240W
Maximum power current	12.94A
Maximum power voltage	18.56V
Open-circuit voltage	21.76V
Short-circuit current	13.71A
Maximum system voltage	500V
Output tolerance	0~+3%
Cable (MC4)	700mm/2.5mm²
Rated value of junction box	≥IP67
Solar cell	18291--164
Operating temperature	-40°C~+85°℃
Module size	152076030mm
Weight (net weight/gross weight)	12.8/14.6kg
