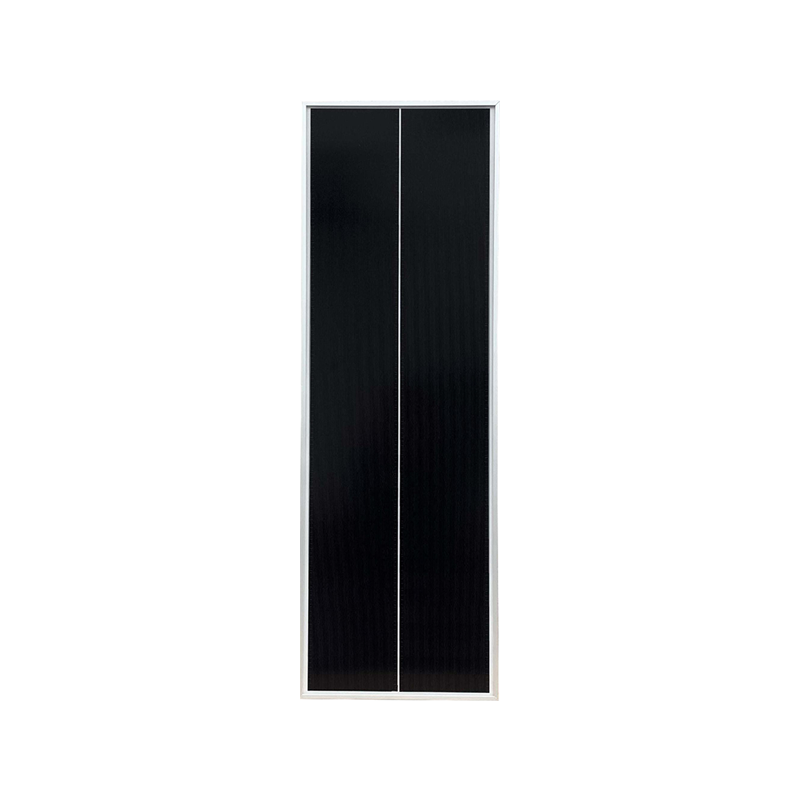

20W Single Crystal Solar Panel

The 20W monocrystalline solar panel utilizes high-efficiency monocrystalline silicon wafers for high photovoltaic conversion efficiency. Its optimized structure comprises 36 monocrystalline cell units, covered with high-transmittance, low-iron tempered glass for enhanced light absorption and physical protection. The ETFE encapsulation ensures weather and UV resistance, while the backsheet utilizes a waterproof TPT composite material for outdoor use. The standard operating voltage is 12V, compatible with most off-grid energy storage systems. The aluminum alloy frame provides support and reduces weight, making it easy to install and carry. It is suitable for small off-grid power supply applications, outdoor lighting, and mobile device charging. It complies with RoHS environmental standards and operates in temperatures between -40°C and +85°C.

PREV：30W Single Crystal Solar Panel NEXT：240W Single Crystal Solar Panel -- 1520*760*30mm

Product Parameters

Model	SZ-20-S
Rated power	20W
Maximum power current	1.11A
Maximum power voltage	18.15V
Open-circuit voltage	21.75V
Short-circuit current	1.17A
Maximum system voltage	500V
Output tolerance	0~+3%
Rated value of junction box	≥IP67
Solar cell	10528.2--162
Operating temperature	-40~+80℃
Module size	48024025mm
Weight (net weight/gross weight)	1.4/1.6kg
