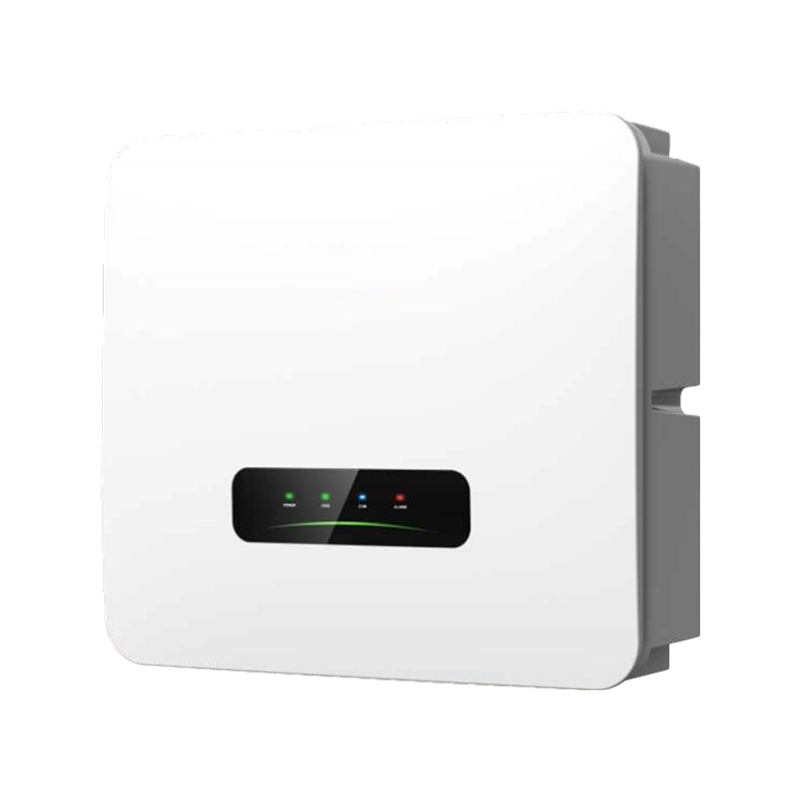

Three-Phase Energy Storage Inverter

The HYX-H5K/6K/8K/10K/12K-HT series is a three-phase energy storage inverter suitable for both grid-connected and off-grid applications. It supports the coordinated operation of photovoltaics and batteries, enabling self-generation of solar energy for self-use, surplus power storage, and backup power supply. It boasts a maximum charge and discharge capacity of 10kW, is compatible with a variety of battery types, and supports three-phase balanced output. It features built-in on-grid and off-grid dual modes with automatic switching. RS485 and CAN communication interfaces support remote monitoring and system integration. With an IP65 protection rating, it is suitable for indoor and outdoor installation. This product is suitable for home and commercial energy storage systems, effectively improving energy self-sufficiency and power stability.

PREV：Three-Phase Energy Storage Inverter NEXT：No next article

Product Parameters

Specification	HYX-H5K-HT	HYX-H6K-HT	HYX-H8K-HT	HYX-H10K-HT	HYX-H12K-HT
DC Input
Maximum Configurable Power	10,000W	12,000W	16,000W	20,000W	24,000W
Maximum Input Power	5,000W/3,000W	6,000W/4,000W	6,400W/6,400W	6,400W/4,800W/4,800W	6,400W/6,400W/6,400W
Maximum Input Voltage	1,000V
Startup Voltage	160V
MPPT Operating Voltage Range	140～980V
Maximum Input Current	36A (18/18)	36A (18/18)	36A (18/18)	54A (18/18×2)	54A (18/18×2)
Maximum Short-Circuit Current	60A (30/30)	60A (30/30)	60A (30/30)	90A (30/30×2)	90A (30/30×2)
Number of MPPT Paths	2
PV Input Quantity (Number of Strings per MPPT Path)	2 (1/1)	2 (1/1)	2 (1/1)	2 (1/2)	2 (1/2)
AC Input / Output
Rated Output Power	5,000W	6,000W	8,000W	10,000W	12,000W
Maximum Output Apparent Power	5,500VA	6,600VA	8,800VA	11,000VA	13,200VA
Maximum Input Apparent Power	11,000VA	13,200VA	17,600VA	22,000VA	26,400VA
Rated Output Current	7.6A	9.1A	12.2A	15.2A	18.2A
Maximum Output Current	8.4A	10.0A	13.4A	16.7A	20.0A
Maximum Input Current	16.7A	20.0A	26.7A	33.4A	40.0A
Rated Output Voltage	3/N/PE, 220V/380V, 230V/400V, 240V/415V
Total Harmonic Distortion (THD)	<3%
Frequency	45～55Hz; 55～65Hz
Adjustable Power Factor	0.8 leading ... 0.8 lagging
DC Current Injection	<0.5%In
Off-Grid Output
Rated Output Power	5,000W	6,000W	8,000W	10,000W	12,000W
Maximum Continuous Output Apparent Power	5,500VA	6,600VA	8,800VA	11,000VA	13,200VA
Peak Output Power	7,500W; 10s	9,000W; 10s	12,000W; 10s	15,000W; 10s	15,000W; 10s
Rated Output Current	7.6A	9.1A	12.2A	15.2A	18.2A
Maximum Output Current	11.4A	13.7A	18.2A	22.8A	27.3A
Transfer Time	<10ms
Battery Input
Battery Type	Lithium Iron Phosphate (LiFePO₄)
Battery Voltage Range	150～600V
Maximum Charge/Discharge Current	40A
Maximum Charge/Discharge Power	5,500W	6,600W	8,800W	11,000W	13,200W
Efficiency
Maximum Efficiency	98.60%
European Weighted Efficiency	98.20%
MPPT Efficiency	99.90%
Battery Charge/Discharge Efficiency	97.50%
Protection Information
DC Insulation Resistance Detection	Yes
Residual Current Detection	Yes
DC Reverse Polarity Protection	Yes
AC & DC Lightning Protection	Level 2
DC Switch	Yes
Anti-Islanding Protection	Yes
AC Over-Current Protection	Yes
AC Short-Circuit Protection	Yes
AC Over-Voltage Protection	Yes
Ground Fault Detection	Yes
Basic Information
Operating Temperature Range	-30～+60℃
Relative Operating Humidity	0~100 %RH
Maximum Operating Altitude	4,000m
Cooling Method	Natural Cooling
Display	LED / App / Web
Communication Method	CAN / RS485 / WIFI / 4G / LAN
Weight	34kg
Dimensions (Width × Height × Thickness)	542×478×186mm
Protection Level	IP65
Installation Method	Wall-Mounted Installation
