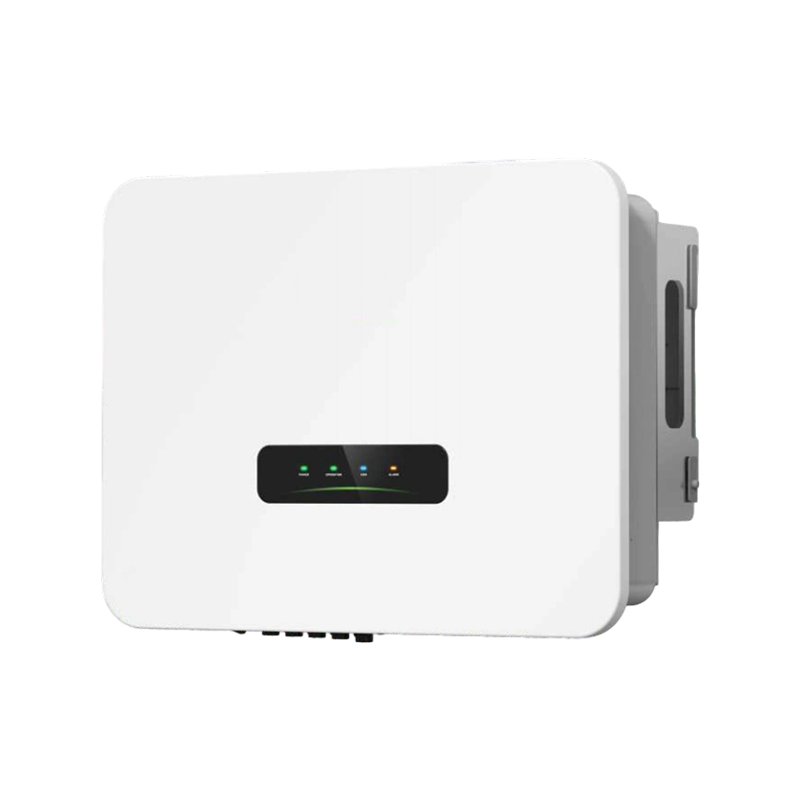

Three-Phase Energy Storage Inverter

The HYX-H15K/20K/25K-HT is a three-phase energy storage inverter suitable for industrial, commercial, and residential energy storage scenarios. It supports the coordinated operation of photovoltaics and batteries, enabling self-generation and storage of solar energy, with both grid-connected and off-grid operation. Its AC-side power rating ranges from 15kW to 25kW, with a battery voltage range of 150–750V and compatibility with a variety of battery types. The system supports parallel operation for capacity expansion and features intelligent charge and discharge management and various grid ancillary services. It also includes built-in backflow protection and grid-connection protection, complying with relevant grid standards. Real-time data management and operational strategy adjustments can be performed via a remote monitoring platform.

PREV：No previous article NEXT：Three-Phase Energy Storage Inverter

Product Parameters

Specification	HYX-H15K-HT	HYX-H20K-HT	HYX-H25K-HT
DC Input
Maximum Configurable Power	30,000W	40,000W	50,000W
Maximum Input Power	6,000W; 16,000W; 16,000W / 6,000W	8,000W / 8,000W / 8,000W / 8,000W	10,000W / 10,000W / 10,000W / 10,000W
Maximum Input Voltage	1,100V
Startup Voltage	160V
MPPT Operating Voltage Range	140～1000V
Maximum Input Current	80A (20×2/20×2)
Maximum Short-Circuit Current	120A (30×2/30×2)
Number of MPPT Paths	2
PV Input Quantity (Number of Strings per MPPT Path)	4 (2/2)
AC Input / Output
Rated Input / Output Apparent Power	31,500VA / 15,000VA	42,000VA / 20,000VA	52,500VA / 25,000VA
Maximum Input / Output Apparent Power	33,000VA / 16,500VA	44,000VA / 22,000VA	55,000VA / 27,500VA
Rated Input / Output Current	47.8A / 22.8A	63.7A / 30.4A	79.5A / 37.9A
Maximum Input / Output Current	50.0A / 25.0A	66.7A / 33.4A	83.4A / 41.7A
Rated Output Voltage	3/N/PE, 220V/380V, 230V/400V, 240V/415V
Total Harmonic Distortion (THD)	<3%
Output Voltage Range	304～476V
Frequency	50Hz / 60Hz
Power Factor	0.8 leading ... 0.8 lagging
DC Current Injection	<0.5%In
Off-Grid Output
Rated Output Apparent Power	15,000VA	20,000VA	25,000VA
Maximum Continuous Output Apparent Power	16,500VA	22,000VA	27,500VA
Peak Output Apparent Power	22,500W; 10s	30,000W; 10s	30,000W; 10s
Rated Output Current	22.8A	30.4A	37.9A
Maximum Output Current	34.1A	45.5A	56.9A
Transfer Time	<10ms
Battery Input
Battery Type	Lithium Iron Phosphate (LiFePO₄)
Battery Voltage Range	150～600V
Maximum Charge/Discharge Current	60A
Maximum Charge/Discharge Power	16,500W	22,000W	27,500W
Efficiency
Maximum Efficiency	98.60%
European Weighted Efficiency	98.20%
MPPT Efficiency	99.90%
Battery Charge/Discharge Efficiency	97.70%
Protection Information
DC Insulation Resistance Detection	Yes
Residual Current Detection	Yes
DC Reverse Polarity Protection	Yes
AC & DC Lightning Protection	Level 2
DC Switch	Yes
Anti-Islanding Protection	Yes
AC Over-Current Protection	Yes
AC Short-Circuit Protection	Yes
AC Over-Voltage Protection	Yes
Ground Fault Detection	Yes
Basic Information
Operating Temperature Range	-30～+60℃
Relative Operating Humidity	0~100 %RH
Maximum Operating Altitude	4,000m
Cooling Method	Natural Cooling	Air Cooling	Air Cooling
Display	LED / App / Web
Communication Method	CAN / RS485 / PLC / WIFI / 4G / LAN
Weight	45kg
Dimensions (Width × Height × Thickness)	650×500×250mm
Protection Level	IP65
Noise Level	<45dB
Installation Method	Wall-Mounted Installation
