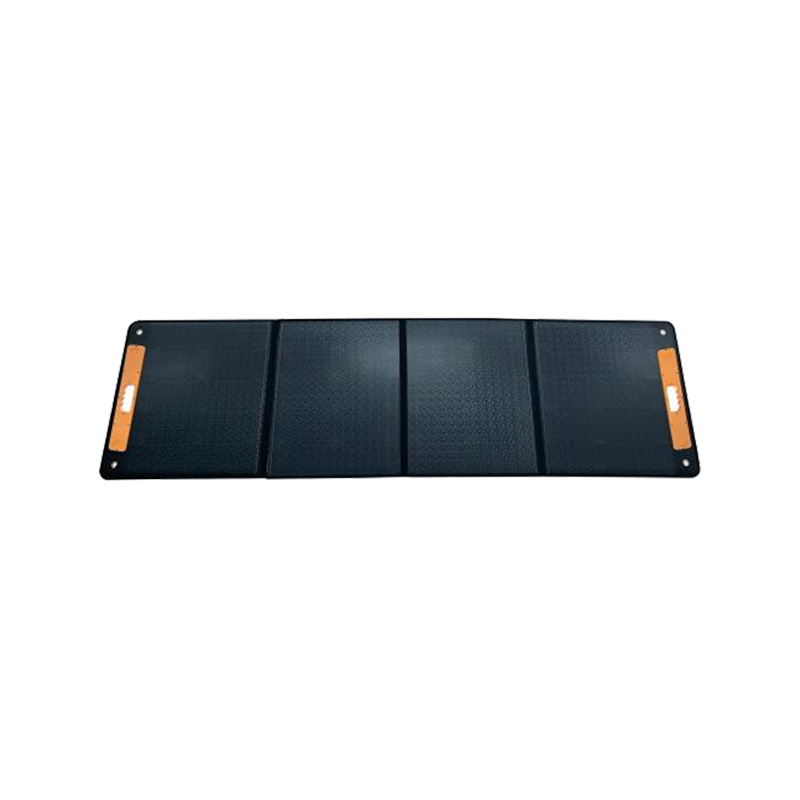

200W-B Single Crystal Folding Solar Panel -- XT60

The 200W-B monocrystalline foldable solar panel utilizes high-efficiency monocrystalline silicon cells, achieving a conversion efficiency of 24% and supporting rapid photoelectric conversion. The panel is covered with an ETFE film for improved weather resistance and light transmittance, and its base material is TPU, which is resistant to breakage and wear. It integrates an XT60 interface, supports high-current transmission, and is compatible with most outdoor power devices. Its foldable design allows for a compact and portable storage volume. Built-in reverse polarity and overload protection circuits enhance operational stability. It is suitable for outdoor lighting, powering mobile devices, and providing emergency power. It operates in a temperature range of -20°C to 65°C, weighs approximately 6.2kg, and has an unfolded size of approximately 1400mm x 680mm.

PREV：300W-B Single Crystal Folding Solar Panel -- XT60 NEXT：100W-B Single Crystal Folding Solar Panel -- XT60

Product Parameters

Model	SZ-200-FC-B
Rated power	200W
Maximum power current	17.4V
Maximum power voltage	11.50A
Open-circuit voltage	20.4V
Short-circuit current	12.19A
Maximum system voltage	0~3%
Output tolerance	18291534
DC output	XT60/30A(Max.)
USB-C PD3.0	5-20V/3A;20V5A(Max.)
USB Port-A	5V2A
USB Port-QC3.0	5-20V/3A
Operating temperature	-20~+65℃
Module size (folding)	58058060mm
Module size (unfolded)	220058030mm
Weight (net weight/gross weight)	6.4/7.0kg

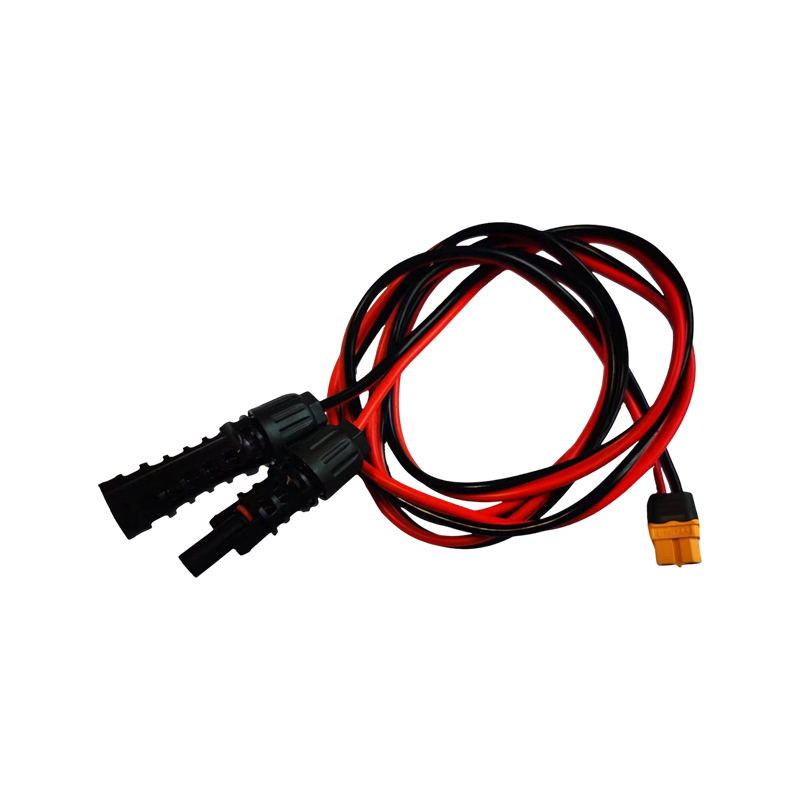

Cable	1*XT60 to MC4---2.5mm²-1.5m
