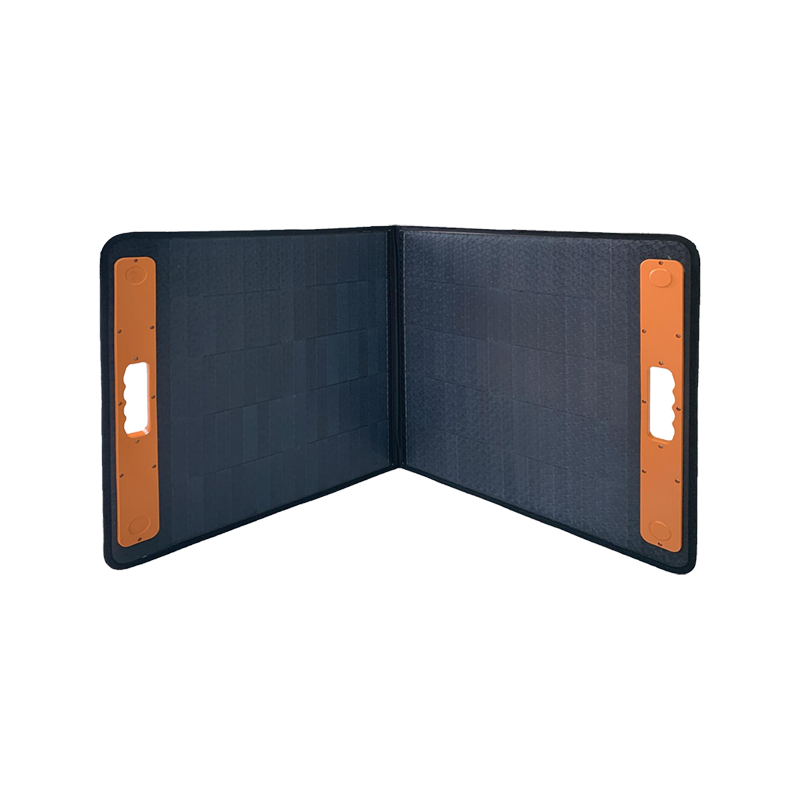

100W-B Single Crystal Folding Solar Panel -- XT60

The 100W-B monocrystalline folding solar panel uses high-efficiency monocrystalline silicon cells with a conversion efficiency of over 23%. It is equipped with an XT60 interface and supports high-current transmission. The panel is covered with an ETFE wear-resistant coating to improve UV resistance and weather resistance. The base material is TPU, which has flexibility and tear resistance. The folding structure design is easy to carry and store, and is suitable for outdoor emergency power supply, mobile device charging and other scenarios. It has built-in anti-reverse polarity and overload protection functions and can operate stably in environments between -20°C and 70°C. It weighs approximately 2.5kg and has an unfolded size of 940×540mm. It can be used with a matching controller to expand the compatibility of the energy storage system.

PREV：200W-B Single Crystal Folding Solar Panel -- XT60 NEXT：No next article

Product Parameters

Model	SZ-100-FC-B
Rated power	100W
Maximum power current	17.4V
Maximum power voltage	5.75A
Open-circuit voltage	20.4V
Short-circuit current	6.09A
Maximum system voltage	0~3%
Output tolerance	18291532

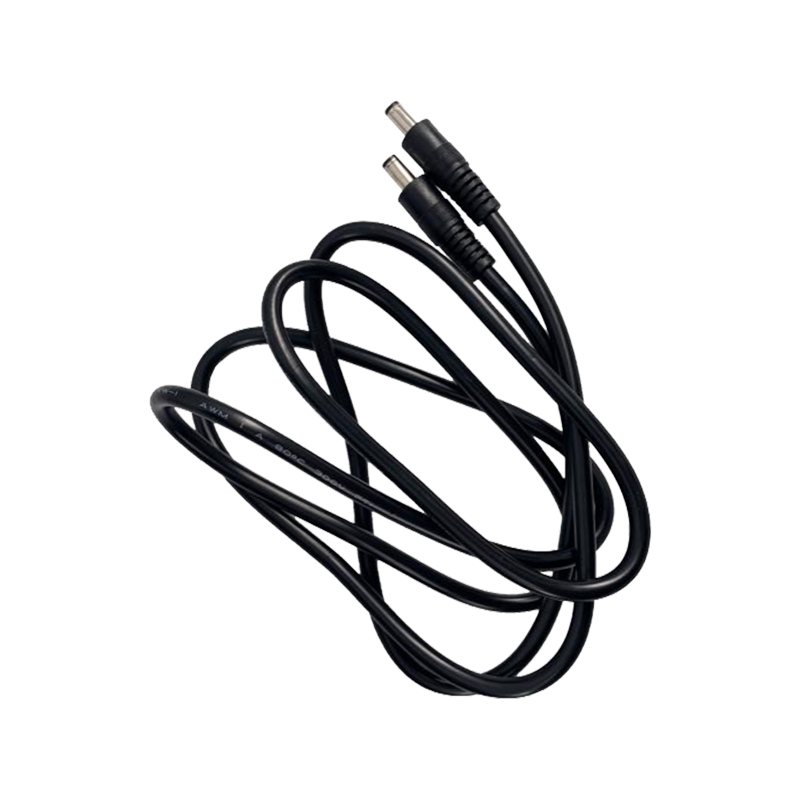

DC output -1	5.5x2.1mm /5A(Max.)
DC output -2	XT60130A(Max.)
USB-C PD3.0	5-20V /3A;20V5A(Max.)
USB Port-A	5V2A
USB Port-QC3.0	5-20V/3A
Operating temperature	-20~+65℃
Module size (folding)	58058060mm
Module size (unfolded)	116058030mm
Weight (net weight/gross weight)	3.5/4.1kg

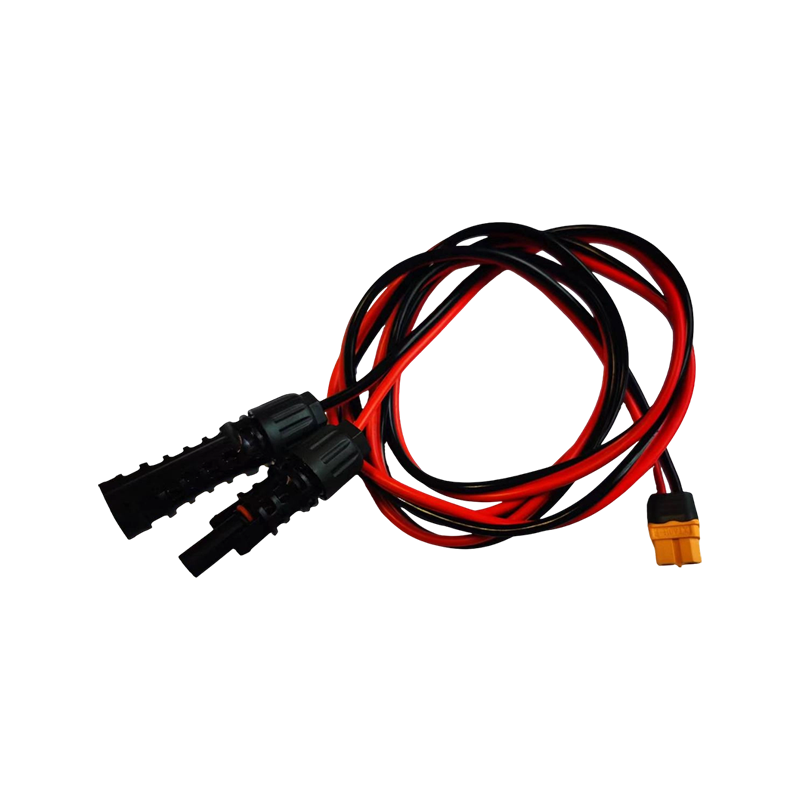

Cable	15521 male---1.0mm²-1.5m, 1XT60 to MC4---2.5mm²-1.5m.
