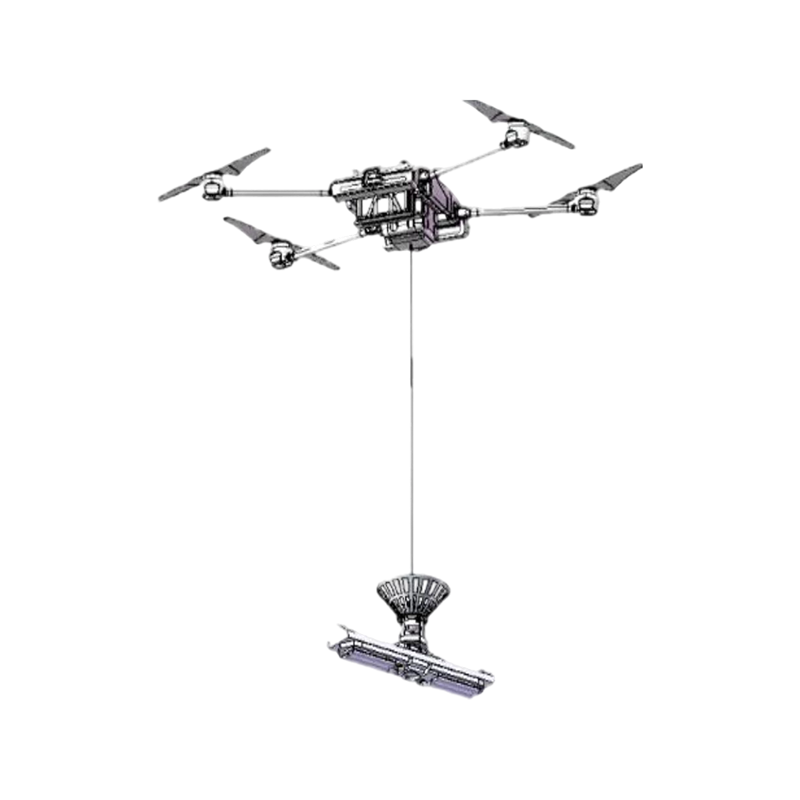

UAV Low-Altitude Unmanned Intelligent Photovoltaic Cleaning System

The newly launched "Low altitude Unmanned Intelligent Photovoltaic Cleaning System" can perform large-scale cleaning and inspection of photovoltaic modules, realizing intelligent monitoring, scientific cleaning, visualized management, and unmanned operation of photovoltaic power plants.
This system is based on AI computer vision for the search, aiming, and positioning of cleaning robots. Through model predictive control algorithms and integrated land-air technology, it has been the first in China to achieve engineering applications.

High-load automatic flight control

30KG effective load, can automatically execute flights according to custom planned flight tasks and complete specified actions.

High precision delivery and docking

Using the MPC model predictive control algorithm, the unmanned automatic docking of the unmanned aerial vehicle docking device with the IFBOTX3 photovoltaic cleaning robot is carried out. Through RTK+machine vision fusion technology, centimeter-level precise positioning and hovering are achieved, with a docking success rate of 90%.

Modular process monitoring

The task planning system platform can arrange and monitor the delivery, transfer, and retrieval actions of drones throughout the process, achieving intelligent positioning and cleaning of photovoltaic panels, and real-time statistical analysis of the number of work tasks.

PREV：IFBOT Flying Fish Crawler Photovoltaic Washing Robot NEXT：IFBOT X3 Portable Intelligent Photovoltaic Cleaning Robot

Product Parameters

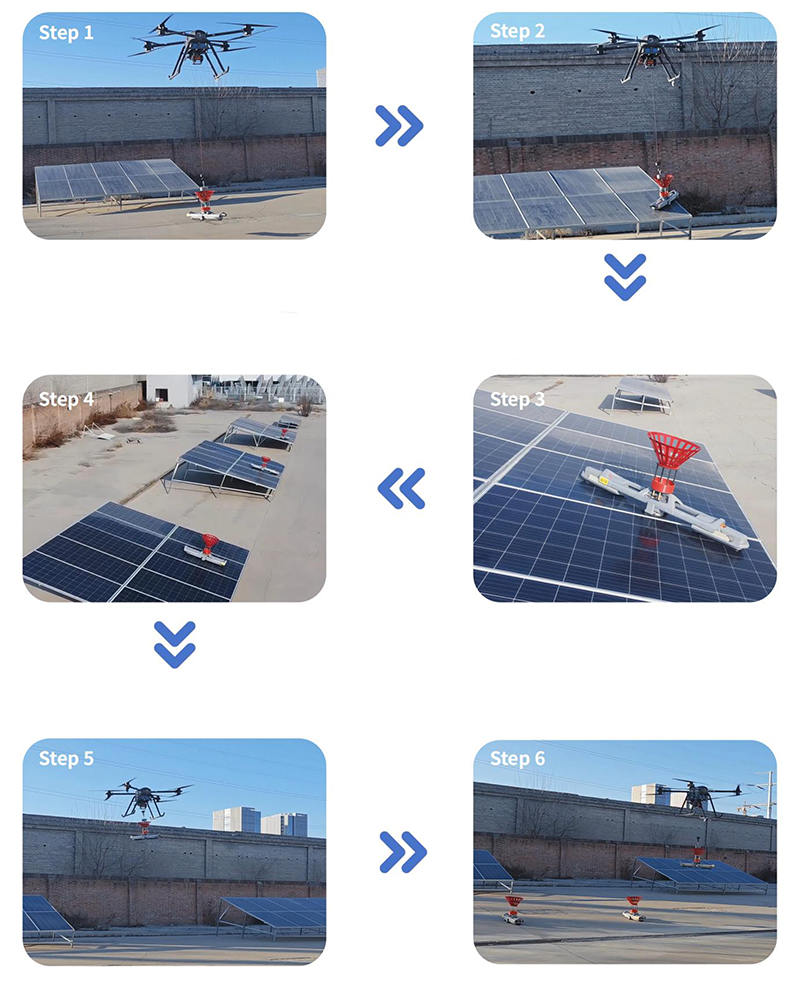

1. Drone lifts a cleaning robot
2. Place the cleaning robot on the photovoltaic panel surface
3. Robots start cleaning photovoltaic panels
4. Multiple cleaning robots working simultaneously
5. Transfer the cleaning robot to other areas to be cleaned
6. After the cleaning is completed, the drone recycles the machine

Unmanned Intelligent Cleaning System: Technical Parameters

Drone parameters
Working dimensions	1984×1894×885 mm
Wheelbase	1800 mm
Number of rotors	Four-axis eight-propeller
Body material	Carbon fiber composite material
Body weight	30 kg
Maximum takeoff weight	90 kg
Standard load	30 kg
Ultimate load	40 kg
Empty flight time	≥ 45 minutes
Flight altitude	≥3000m

Flight parameters
Satellite positioning module	GPS+RTK/Beidou satellite
Airplane mode	Fixed altitude, fixed point, attitude, route
Data transmission link	≤ 20 kilometers under visibility conditions
Operating Temperature	-10℃-45℃
Waterproof rating	IP55
Task dressing time	The time from landing, reloading, and mounting to takeoff operation is less than 8 minutes
Load capacity of 30kg, flight time	≥ 25 minutes
Maximum horizontal flight speed	10m/s
Maximum ascent speed	3m/s
Maximum descent speed	2m/s
Practical ceiling	≤1000m

*The above data is sourced from Yibote Laboratory, subject to actual use.
