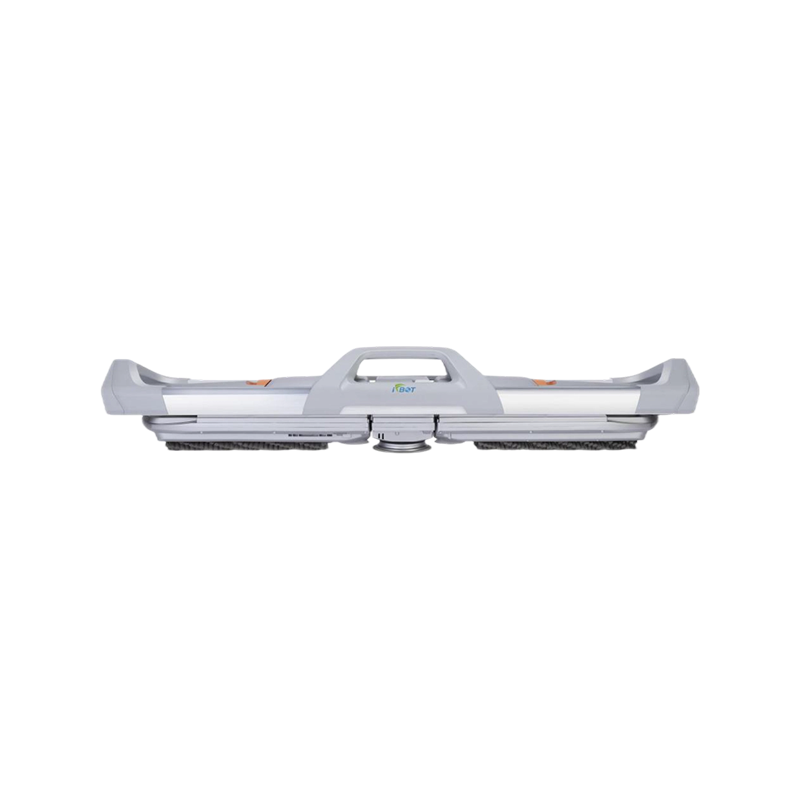

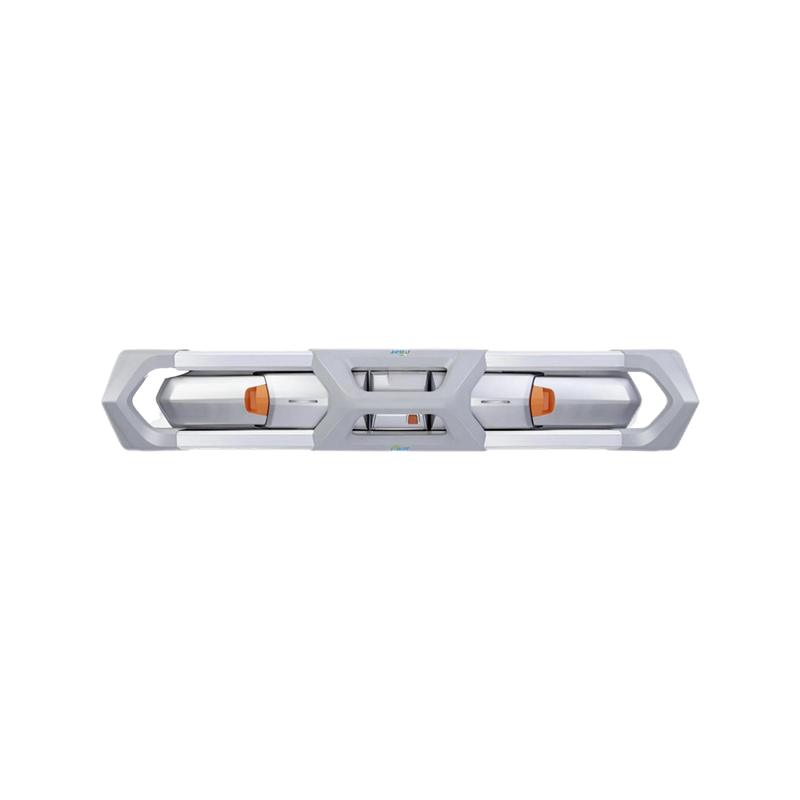

IFBOT X3 Portable Intelligent Photovoltaic Cleaning Robot

IFBOTX3 adopts a lightweight design, with a total weight of only 6.2 kilograms, greatly reducing the burden of transportation and light pollution
Damage to the insulation panel.
The machine adopts a suction cup moving method and can work stably on a slope of 15 ° 40 °. By using two rotating nanofiber rollers and a turbocharged centrifugal fan, dust can be effectively removed without the need for a water source, and dry cleaning can also meet the cleaning needs of high-angle photovoltaic panels in arid northern regions.
IFBOTX3 can operate at night and automatically return when the battery is low, without the need for manual supervision. A single robot is powered by 2 lithium batteries, allowing the entire machine to run continuously for 4 hours. Quick disassembly and assembly design with magazine style, allowing for easy battery replacement and extended battery life.

PREV：UAV Low-Altitude Unmanned Intelligent Photovoltaic Cleaning System NEXT：TLMax-TR Flat Single-Axis Cleaning Robot

Product Parameters

IFBOT X3: Product Features

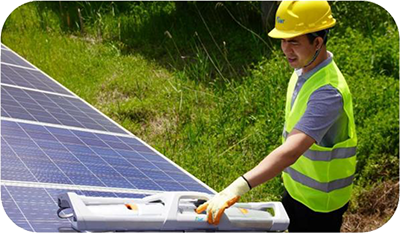

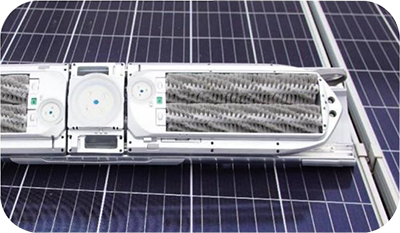

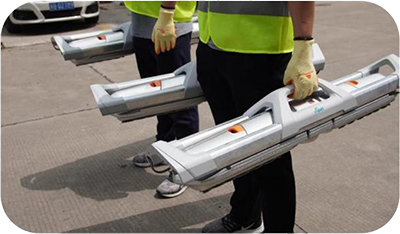

Ultra lightweight Innovative use of aerospace materials and lightweight design of the entire machine, weighing only 6.2kg, effectively reducing the risk of hidden cracks in photovoltaic panels. Reducing the burden of transportation for users, a single person can quickly deploy and manage 20 units simultaneously, saving cleaning costs and effectively improving work efficiency.	Nano waterless cleaning A single cleaning unit is equipped with two rotating nanofiber rollers, which can pick up the dust particles adsorbed on the surface and gather them, and instantly suck them into the dust box through the centrifugal force of the turbocharged centrifugal fan. Clean and water free, environmentally friendly and effortless.

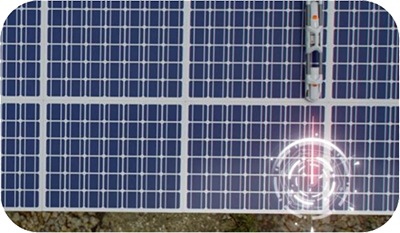

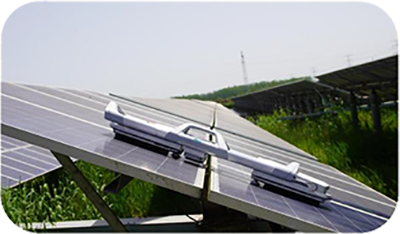

Automatic path planning Just one click to start. The unique rotating cleaning mode, equipped with integrated sensors, enables the robot to accurately detect the edges of the array, autonomously calculate the optimal cleaning route, and comprehensively cover without omission.	Up to 40 ° inclined surface adsorption The robot tightly adheres to the surface of the photovoltaic panel through a movable suction cup, and the misaligned auxiliary suction cup enables it to walk more stably and freely on a smooth slope of 15 ° 40 °, adapting to various complex working environments.

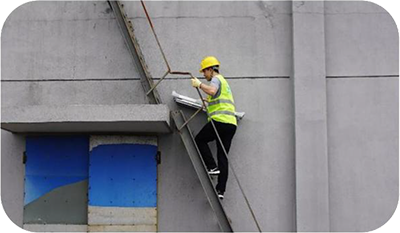

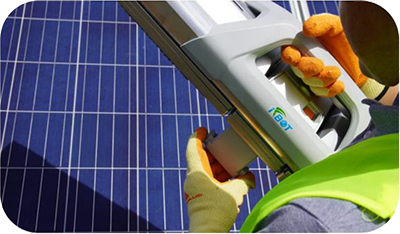

Cartridge battery replacement A single robot is powered by 2 IFBOT dedicated lithium batteries, which can allow the entire machine to run continuously for 4 hours. The magazine style quick disassembly design easily extends the battery life.	All terrain coverage Robots are compact in size, easy to carry, and can easily reach various special workplaces such as steep mountain tops and high-rise roofs.

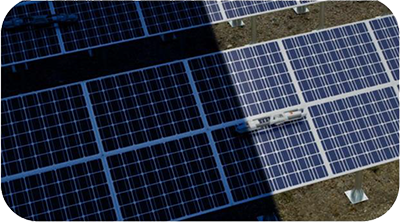

Autonomous low battery return During large-scale continuous cleaning, the robot can autonomously descend to the lowest point of the array after low power, making it convenient for the operator to take and replace the battery, reducing repeated trampling and damage to the photovoltaic panel.	Night cleaning The IFBOT cleaning robot can safely perform cleaning operations at night. During the day, it does not affect the power generation of the power station, significantly improving the power generation efficiency of users.

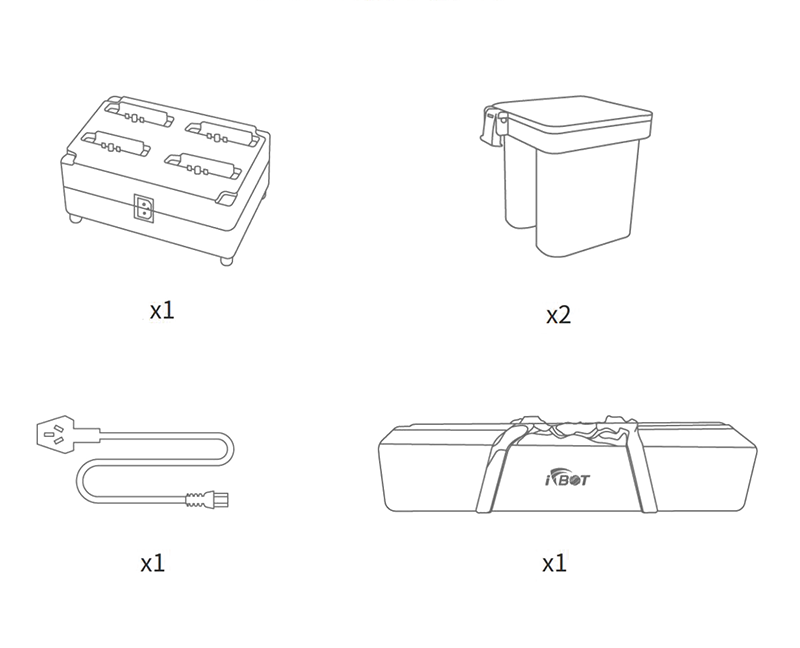

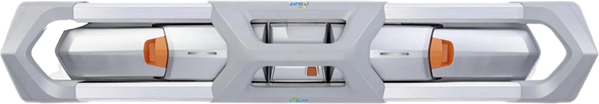

IFBOTX3: Product Configuration

IFBOTX3 cleaning robot x1

Dedicated battery charging dock x1

Dedicated power cord x1

Dedicated rechargeable battery x2

Special storage bag x1

IFBOTX3: Technical Parameters

Machine parameters
Size (including roller brush and battery)		1020×188×180 mm
Weight (including roller brush and battery)		6.2kg
Roller brush width		1200 mm
Protection level		IP44

Battery parameters
Battery Specifications		7000 mAh lithium battery
Battery weight		Single 355g
Battery life		4h (2 batteries)
Charging duration		3.5h

Adaptability
Applicable work perspective		15°-40°
Lateral obstacle crossing ability		100 mm
Vertical obstacle crossing ability		10 mm
Ambient temperature		-10℃-50℃

Cleaning ability
Cleaning efficiency		30 m/h
Cleaning method		Dry sweep without water
Cleaning pollutant types		Dust
Dust box capacity		270 mlx2

Working mode
Control mode		One click start, self-cleaning
Remote control distance		100m

Quality Assurance
Warranty period		1 year
Design life		10 years

*The above data is sourced from Yibote Laboratory, subject to actual use.
