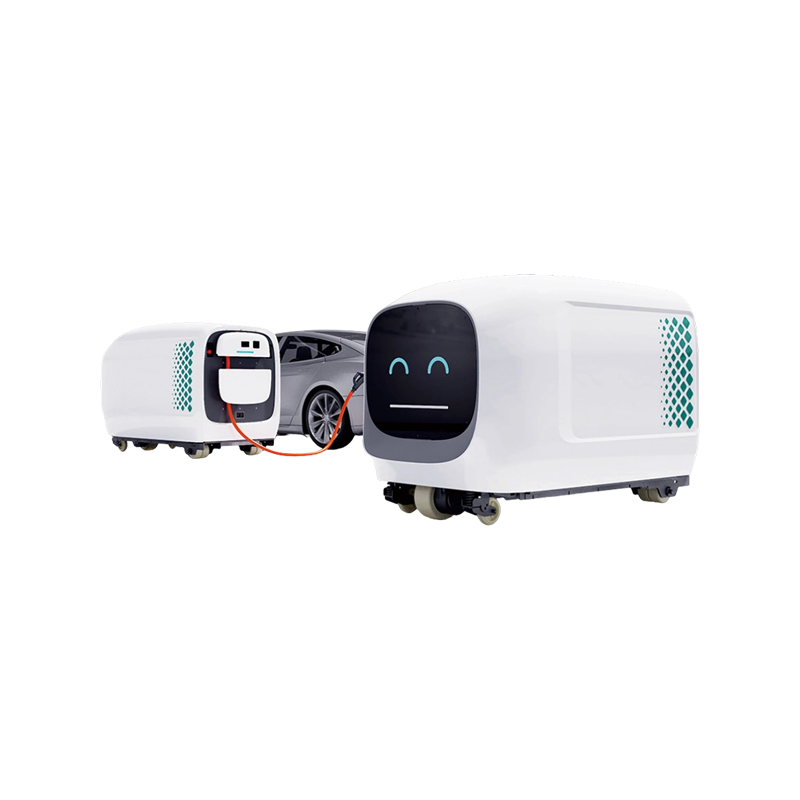

Eplvs - Smart Mobile Energy Storage Charging Station

The Eplvs intelligent mobile energy storage charging station is a DC fast-charging device with multi-standard compatibility. It offers three interface versions: European, American, and Chinese. Its rated power is 60kW and its battery capacity is 184kWh. The device integrates a lithium iron phosphate battery system, supports bidirectional charging and discharging, and intelligent scheduling. It can store energy during off-peak hours of the power grid and supply power during peak hours, and has V2G (vehicle-to-grid) functionality. The built-in battery management system (BMS) monitors voltage, temperature, and current in real time to ensure operational stability. The entire device adopts an IP54 protection grade, adaptable to various outdoor environments, and is equipped with an intelligent human-computer interaction interface and a remote operation and maintenance management platform. It supports OTA upgrades and fault diagnosis, and can be widely used in public parking lots, temporary event sites, and emergency power replenishment scenarios.

PREV：No previous article NEXT：No next article

Product Parameters

Specification		European Standard 60kW/184kWh	American Standard 60kW/184kWh	Chinese Standard 60kW/184kWh
Inverter Output Power		AC 22kW	AC 22kW	/
Cell Capacity		300Ah	300Ah	100Ah
DC Output Voltage		150 Vdc—1000 Vdc	150 Vdc—1000 Vdc	200 Vdc-750 Vdc
Rated Electricity Capacity		184kWh	184kWh	184kWh
Dimensions (Length × Width × Height)		210010541400mm	210010541400mm	210010541400mm
Weight (kg)		2100kg	2100kg	2100kg
Maximum Output Current		150 A	150 A	150 A
Charging Connector Standard		CCS2,type2	CCS1,typel	GB/T 20234-2015
Cooling Method		Self-Heating Cooling	Self-Heating Cooling	Self-Heating Cooling
Rated Voltage		614.4V	614.4V	614.4V
Rated Capacity		300 Ah	300 Ah	300 Ah
Charging Pile Power		60 kW	60 kW	60 kW
Charging Current		150 A MAX	150 A MAX	150 A MAX
Maximum Speed		5km/h	5km/h	5km/h
Maximum Climbing Gradient		8%	8%	8%
AC Input	Voltage Input Range	260 Vac~530 Vac	260 Vac~530 Vac	260 Vac~530 Vac
	Maximum Input Current	43 A	43 A	63A
	Input Connection Mode	3P+N+PE	3P+N+PE	3P+N+PE
DC Output	Output Voltage Range	200 Vdc~1000 Vdc	200 Vdc~1000 Vdc	200 Vdc~750 Vdc
	Maximum Output Current	150 A	150 A	150 A
	Maximum Output Power	DC 60 kW	DC 60 kW	DC 60 kW
Ground Clearance		95 mm	95 mm	85 mm
Ground Condition		Concrete, Asphalt, etc.	Concrete, Asphalt, etc.	Concrete, Asphalt, etc.
Built-in Charging Pile Specification		60kW/1000VDC(380VAC)	60kW/1000VDC(380VAC)	60kW/750VDC(380VAC)
AC Input Voltage Range		260V-530V	260V-530V	260V-530V
Rated Output Voltage		500 Vdc	500 Vdc	500 Vdc
Maximum Output Current		150 Adc	150 Adc	150 Adc
Software Configuration		Self-Adaptive Charging Protocol, Expandable	Self-Adaptive Charging Protocol, Expandable	"Adopts Chinese National Standard 2015 Protocol, Compatible with 2011 Protocol"
Communication Interface		Wireless Communication	Wireless Communication	Wireless Communication
Protection Degree (IP Rating)		IP54	IP54	IP54
Protection Degree (IP Rating)		-30℃~50℃	-30℃~50℃	-30℃~50℃
Altitude		≤2000m	≤2000m	≤2000m
