Single-Phase String Inverter

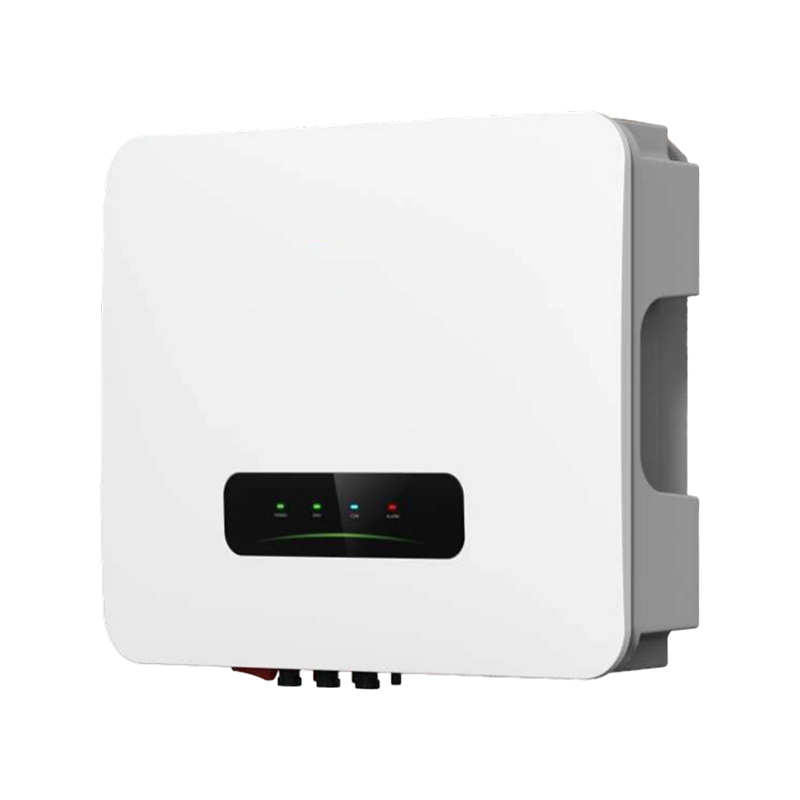

The HYX-S7K/8K/9K/10K/12K-S series of single-phase string inverters are suitable for residential and small commercial PV systems, supporting a rated output power range of 7kW to 12kW. This series features a multi-channel MPPT design, adaptable to complex installation environments and minimizing the impact of shadows on power generation. They offer a wide input voltage range and are compatible with a variety of module configurations. Integrated DC safety protection and intelligent arc fault protection ensure compliance with relevant safety standards. A built-in Wi-Fi or 4G communication module supports remote monitoring and operation and maintenance management. The aluminum alloy casing provides excellent heat dissipation and outdoor protection, making it suitable for a variety of installation environments.

PREV：No previous article NEXT：Single-Phase String Inverter

Product Parameters

Specification	HYX-S7K-S	HYX-S8K-S	HYX-S9K-S	HYX-S10K-S	HYX-S12K-S
DC Input
Maximum Input Power	11,200W	12,800W	14,400W	16,000W	19,200W
Maximum Input Voltage	600V
Rated Input Voltage	360V
Startup Voltage	90V
MPPT Operating Voltage Range	80～560V
Maximum Input Current	20A / 20A	20A / 20A	20A / 20A / 20A	20A / 20A / 20A	20A / 20A / 20A
Maximum Input Short-Circuit Current	24A / 24A	24A / 24A	24A / 24A / 24A	24A / 24A / 24A	24A / 24A / 24A
Number of MPPT Paths	2	2	3	3	3
Allowed String Input per MPPT Path	1/1	1/1	1/1/1	1/1/1	1/1/1
AC Output
Rated Output Power	7,000W	8,000W	9,000W	10,000W	12,000W
Maximum Apparent Power	7,700VA	8,800VA	9,900VA	11,000VA	13,200VA
Rated Output Voltage	220V/230V/240V, 1/N/PE
Rated Output Frequency	50Hz/60Hz
Rated Output Current	31.8A	36.4A	40.9A	45.5A	54.5A
Maximum Output Current	35A	40A	45A	50A	60A
Power Factor	>0.99 (Default) / 0.8 Leading ... 0.8 Lagging
Total Harmonic Distortion (at Linear Load)	<3%
Conversion Efficiency
Maximum Efficiency	98.3%
European Efficiency	97.6%
MPPT Efficiency	99.9%
Protection Information
DC Reverse Polarity Protection	Yes
DC Switch	Yes
DC Bus Over-Voltage Protection	Yes
DC Over-Current Protection	Yes
AC Short-Circuit Protection	Yes
AC Over-Voltage Protection	Yes
AC Over-Current Protection	Yes
AC Over-Frequency / Under-Frequency Protection	Yes
DC Surge Protection	Level 2
AC Surge Protection	Level 2
Anti-Islanding Protection	Yes
AFCI (Arc-Fault Circuit Interrupter)	Yes
Basic Information
Operating Temperature	-30～+60℃
Relative Humidity	0～100 %RH
Maximum Altitude	4,000m
Cooling Method	Natural Heat Dissipation
Human-Machine Interaction	LED Indicators; WLAN / Bluetooth + App
Communication Method	RS485 / 4G / WIFI
Weight	23kg
Dimensions (Width × Height × Thickness)	522×416×162.5mm
Inverter Topology	Transformerless
Protection Level	IP66
Over-Voltage Category	PV Ⅱ / AC Ⅲ
Matching Optimizer Type	HYX-OP700
