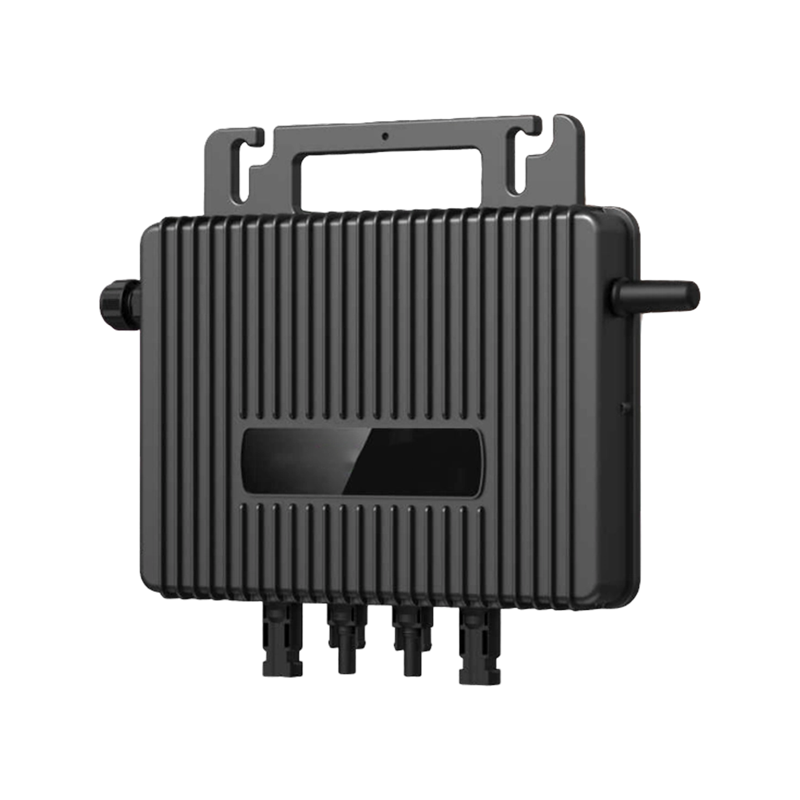

Single-Phase Microinverter

The HYX-M series microinverters, available in models HYX-M600/700/800/900/1000-S(SW), are suitable for single-phase photovoltaic power generation systems. They support independent maximum power point tracking (MPPT) for each module, effectively improving overall system efficiency. With rated AC output power ranging from 600W to 1000W, these products are compatible with a wide range of photovoltaic module sizes. They are designed for direct grid connection and feature reactive power regulation and remote monitoring. Built-in anti-islanding protection ensures compliance with grid-connected safety standards. The aluminum alloy housing has an IP67 rating, making them suitable for outdoor installation.

PREV：Single-Phase Microinverter NEXT：Single-Phase Microinverter

Product Parameters

Specification	HYX-M600-S HYX-M600-SW	HYX-M700-S HYX-M700-SW	HYX-M800-S HYX-M800-SW	HYX-M900-S HYX-M900-SW	HYX-M1000-S HYX-M1000-SW
DC Input
Recommended Matching Module Power	240～450W	280～525W	320～600W	360～670W	400～670W
MPPT Voltage Range	16～60V
Maximum Input Voltage	65V
Startup Voltage	20V
Maximum Input Current	2×16A
Maximum Input Short-Circuit Current	2×20A
Number of MPPT	2
Number of Input Strings per MPPT Channel	1
AC Output
Rated Output Power	600VA	700VA	800VA	900VA	1,000VA
Rated Output Current	2.73A / 2.61A / 2.5A	3.18A / 3.04A / 2.92A	3.64A / 3.48A / 3.33A	4.09A / 3.91A / 3.75A	4.55A / 4.35A / 4.17A
Output Voltage / Range	220V / 230V / 240V / 183～276V
Rated Frequency / Range	50Hz / 45～55Hz, 60Hz / 55～65Hz
Adjustable Power Factor	>0.99 (Default) / 0.8 Leading ... 0.8 Lagging
Total Harmonic Distortion	<3%
Maximum Number of Microinverters per Branch (10AWG Bus)	14/15/16	12/13/13	10/11/12	9/10/10	8/9/9
Maximum Number of Microinverters per Branch (12AWG Bus)	10/11/12	9/9/10	8/8/9	7/7/8	6/6/7
Conversion Efficiency
Peak Efficiency	96.70%
MPPT Efficiency	99.80%
Night Power Consumption	<30mW
Basic Information
Operating Temperature	-40～+65℃
Dimensions (WHD)	25218035mm
Protection Degree (IP Rating)	IP67
Cooling Method	Natural Cooling
Weight	3.0kg
Others
Communication Method ¹	Sub-1G Built-in WiFi
Isolation Method	High-Frequency Transformer Electrical Isolation
Warranty	12-Year Standard Warranty, Extendable to 25 Years
Protection Information
Input Reverse Polarity Protection	Yes
Output Short-Circuit Protection	Yes
Output Overcurrent Protection	Yes
Output Overvoltage Protection	Yes
Anti-Islanding Protection	Yes
