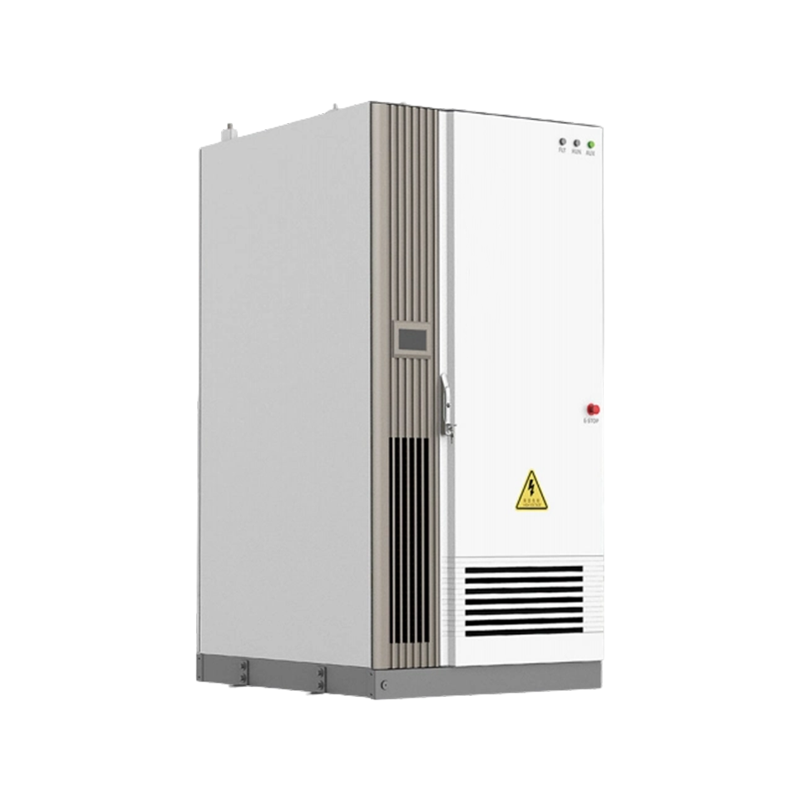

Gotion Edge - Industrial and Commercial Energy Storage Outdoor Cabinet

The Gotion Edge Industrial and Commercial Energy Storage Outdoor Cabinet is a modular energy storage solution designed specifically for industrial and commercial applications. The series includes multiple models (ESD1267-05P760, ESC704-05P211, ESD704-1P253, and ESC844-05P253) with flexible configurations to accommodate varying capacity and power requirements. The system utilizes lithium iron phosphate battery technology, offering high safety and a long cycle life.

The outdoor cabinet structure meets IP54 protection rating and is windproof, dustproof, and rainproof, making it suitable for a wide range of environmental conditions. The system supports on-grid and off-grid switching, peak and off-peak electricity price management, and backup power supply, effectively enabling energy scheduling and cost optimization. A built-in intelligent management system provides real-time data monitoring and fault diagnosis, supporting remote operation and maintenance. The equipment complies with relevant international safety certification standards and is suitable for distributed energy storage applications in factories, industrial parks, commercial buildings, and other locations.

PREV：No previous article NEXT：No next article

Product Parameters

Specification	ESD1267-05P760
Electrical Parameters
Cell Capacity	300Ah
Nominal Energy	760.3kWh
Nominal Voltage	1267.2V
Recommended Operating Voltage Range	1108.8V~1425.6V
Maximum Charge/Discharge Rate	0.5P@25℃
Maximum Charging Power	380.1kW (0.5P)
Environmental Parameters
Operating Temperature Range	-20℃~45℃
Operating Humidity Range	≤95%
Protection Degree (IP Rating)	IP54
Cooling Method	Liquid Cooling
Fire Suppression System	PACK-Level Immersion Fire Suppression + Aerosol Fire Suppression + Water Fire Suppression
Altitude	<3000m
Communication Method
Communication Method	CAN, RS485, Ethernet
Compliant Standards	UL1973, UL9540A, IEC62619, UN38.3, IEC60356, GB/T 36276
Structural Parameters
Dimensions (WDH)	1400mm2400mm2500mm
Weight	≈8t

Specification	ESC704-05P211	ESD704-1P253	ESC844-05P253
Electrical Parameters
Cell Capacity	300Ah	90Ah	300Ah
Nominal Energy	211kWh	253.4kWh	253.4kWh
Nominal Voltage	704V	704V	844.8V
Recommended Operating Voltage Range	600V~803V	616V~792V	739.2V~950.4V
Maximum Charge/Discharge Rate	0.5P@25℃	1P@25℃	0.5P@25℃
Maximum Charging Power	100kW	250kW	125kW
Environmental Parameters
Operating Temperature Range	-20℃~45℃	-20℃~45℃	-20℃~45℃
Operating Humidity Range	≤95%	≤95%	≤95%
Protection Degree (IP Rating)	IP55	IP54	IP55
Cooling Method	Liquid Cooling	Air Cooling	Liquid Cooling
Fire Suppression System	Heptafluoropropane / Perfluorohexanone	Heptafluoropropane / Perfluorohexanone	Heptafluoropropane / Perfluorohexanone
Altitude	<3000m	<3000m	<3000m
Communication Method
Communication Method	CAN, RS485, Ethernet	CAN, RS485, Ethernet	CAN, RS485, Ethernet
Compliant Standards	GB/T 36276, IEC62619, IEC62477, IEC61000, UN38.3	UL1973, IEC62619, UL9540A*, UN3536	GB/T 36276, UN38.3
Structural Parameters
Dimensions (WDH)	1340mm1300mm2260mm	2991mm2438mm2591mm	1330mm1286mm2380mm
Weight	≈2.6t	≈7.4t	≈2.85t
