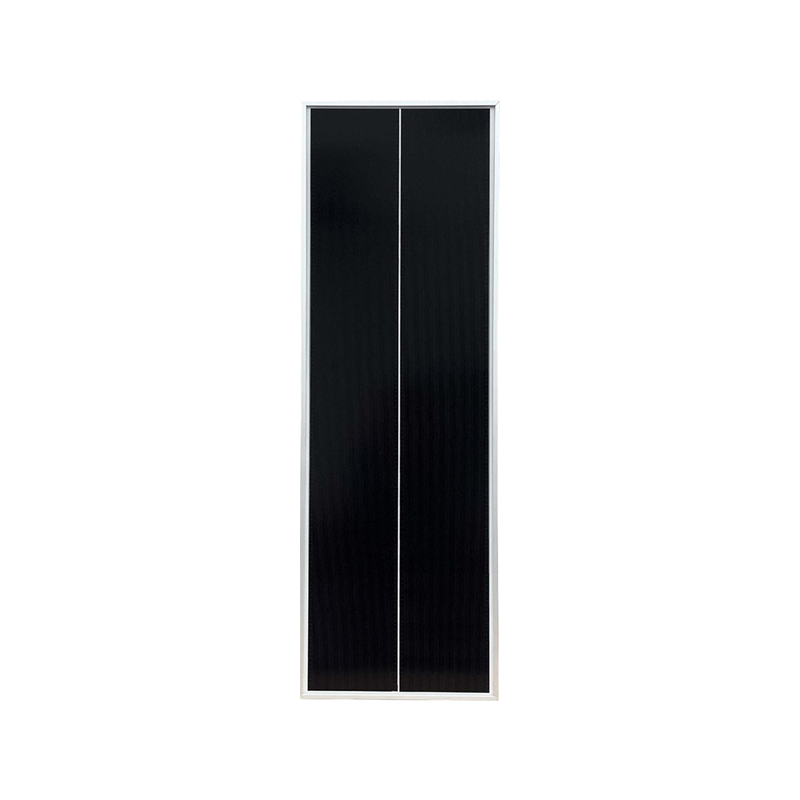

50W Single Crystal Solar Panel

50W monocrystalline solar panels are made from high-purity monocrystalline silicon wafers, with a conversion efficiency typically ranging from 18% to 22%. These panels are rated for 50W output power under standard test conditions (STC), an operating voltage of approximately 18V, and an open-circuit voltage of approximately 21.6V. Their construction, including anti-reflective coated glass, EVA encapsulation, and a weather-resistant backsheet, provides strong mechanical strength and long-term environmental tolerance. They are suitable for off-grid lighting, small home systems, surveillance equipment, and portable power generation. Typical dimensions are approximately 670 x 540 x 30 mm, and they weigh approximately 4.2 kg. The panels are typically equipped with MC4 connectors, allowing for series or parallel expansion of system capacity.

PREV：100W Single Crystal Solar Panel -- 1190*450*30mm NEXT：40W Single Crystal Solar Panel

Product Parameters

Model	SZ-50-S
Rated power	50W
Maximum power current	2.33A
Maximum power voltage	21.55V
Open-circuit voltage	25.62V
Short-circuit current	2.46A
Maximum system voltage	500V
Output tolerance	0~+3%
Cable (MC4)	500mm/2.5mm²
Rated value of junction box	≥IP67
Solar cell	21028.219*2
Operating temperature	-40~+80℃
Module size	45056525mm
Weight (net weight/gross weight)	2.75/3.25kg
