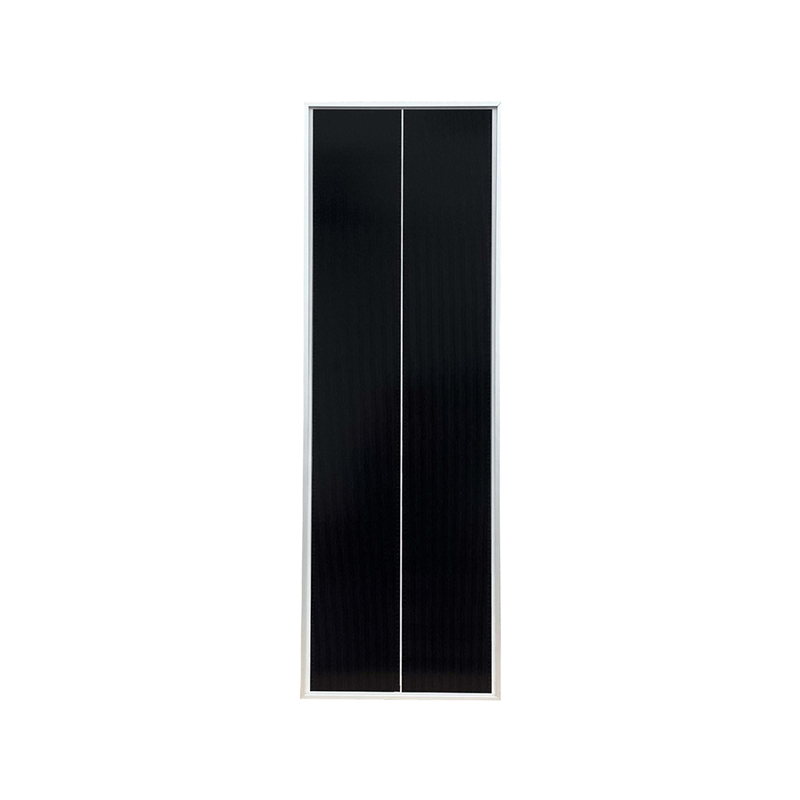

200W Single Crystal Solar Panel -- 153067030mm

This product is a 200W monocrystalline solar panel with dimensions of 1530×670×30mm. It utilizes high-efficiency monocrystalline silicon cell technology and boasts high photovoltaic performance. The panel is covered with high-transmittance, low-iron tempered glass, enhancing light absorption and mechanical strength. It can withstand wind pressures of 2400Pa and snow pressures of 5400Pa.
The anodized aluminum alloy frame is corrosion-resistant and adaptable to various installation environments. The connection box has an IP68 rating and operates stably in humid environments. It operates in temperatures ranging from -40°C to +85°C. It is suitable for residential off-grid systems, small commercial power plants, and building-integrated photovoltaic systems.
Electrical parameters include: maximum power voltage (Vmp) approximately 20.4V, maximum power current (Imp) approximately 9.8A, open-circuit voltage (Voc) approximately 24.3V, and short-circuit current (Isc) approximately 10.2A.

PREV：No previous article NEXT：200W Single Crystal Solar Panel -- 1530*670*30mm

Product Parameters

Model	SZ-200-S
Rated power	200W
Maximum power current	11.02A
Maximum power voltage	18.15V
Open-circuit voltage	21.57V
Short-circuit current	11.69A
Maximum system voltage	500V
Output tolerance	0~+3%
Cable (MC4)	700mm/2.5mm²
Rated value of junction box	≥IP67
Solar cell	21033.2--324
Operating temperature	-40~+80℃
Module size	110089030mm
Weight (net weight/gross weight)	10.6/11.5kg
