Gotion Home - Residential Energy Storage System

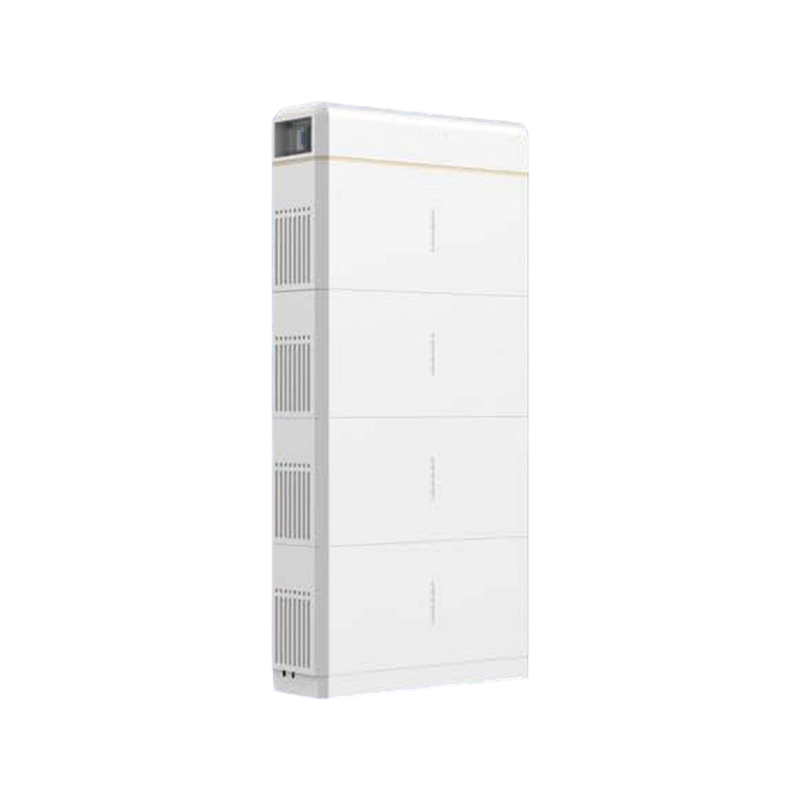

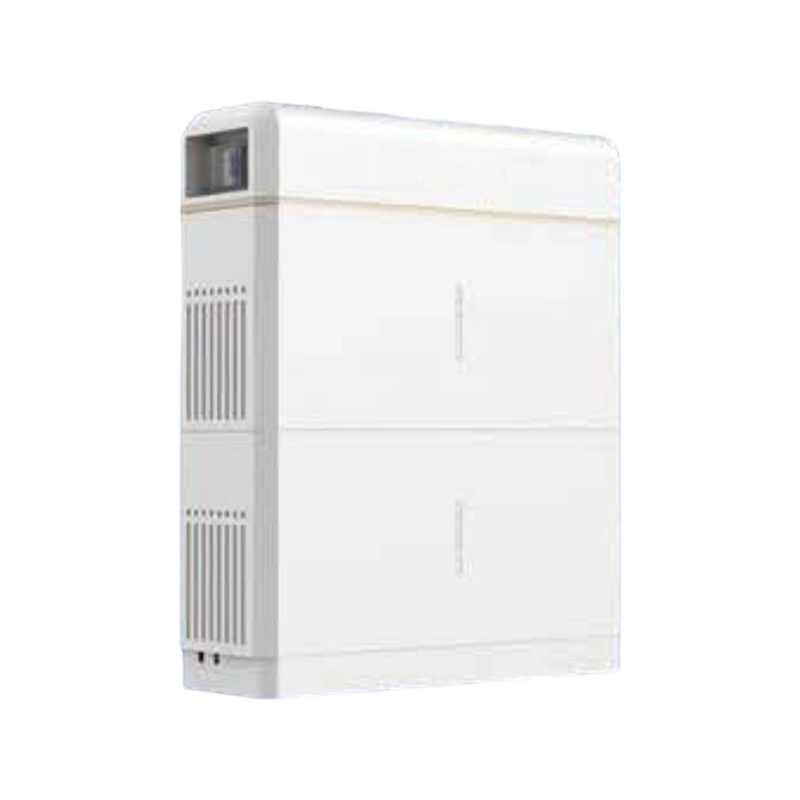

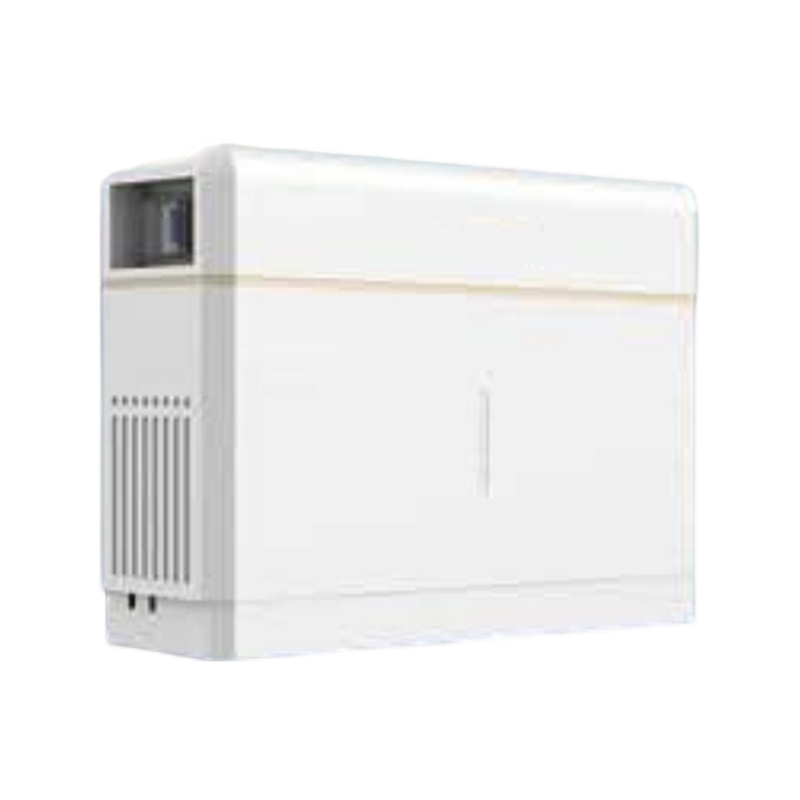

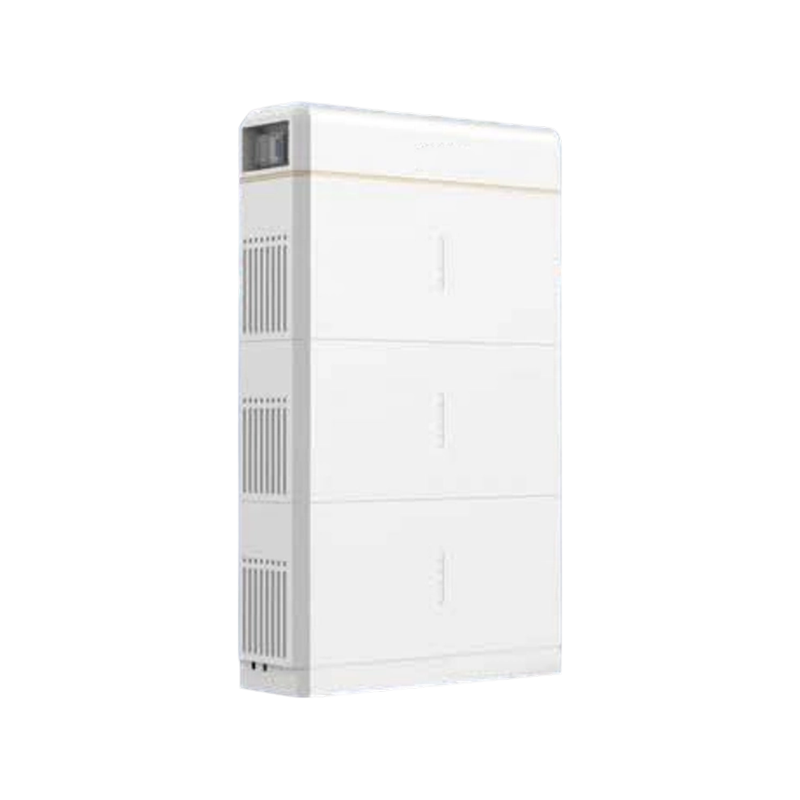

The Gotion Home household energy storage system adopts a modular design and is available in four capacity models: HSD51.2-02C5L (5kWh), C10L (10kWh), C15L (15kWh), and C20L (20kWh). The system is based on lithium iron phosphate batteries and supports a maximum continuous output power of 5kW. It can be used in conjunction with a photovoltaic system to achieve self-generation and self-use of clean energy. It has an IP65 protection level and is suitable for a variety of indoor and outdoor installation environments. The system supports parallel expansion, and users can flexibly adjust the energy storage scale according to actual power demand. The built-in intelligent battery management system provides functions such as overcharge, over-discharge, and temperature protection. The supporting energy management software can realize operating status monitoring and power consumption strategy customization.

PREV：No previous article NEXT：No next article

Product Parameters

Specification	HSD51.2-02C5L	HSD51.2-02C10L	HSD51.2-02C15L	HSD51.2-02C20L
Electrical Parameters
Cell Capacity	100Ah
Nominal Energy	5.1kWh	10.2kWh	15.3kWh	20.4kWh
Nominal Voltage	51.2V
Recommended Operating Voltage Range	43.2V~56.8V
Maximum Charge/Discharge Power	2.5kW	5kW	5kW	5kW
Environmental Parameters
Operating Temperature Range	-20℃~45℃
Operating Humidity Range	5~95%
Protection Degree (IP Rating)	IP65
Cooling Method	Natural Cooling
Altitude	<3000m
Communication Method
Communication Method	CAN, RS485
Compliant Standards	IEC62619, UL9540A, UL1973, UN38.3
Structural Parameters
Dimensions (WDH)	705mm239mm528mm	705mm239mm846mm	705mm239mm1164mm	705mm239mm1482mm
Weight	≈67kg	≈120kg	≈170kg	≈220kg
