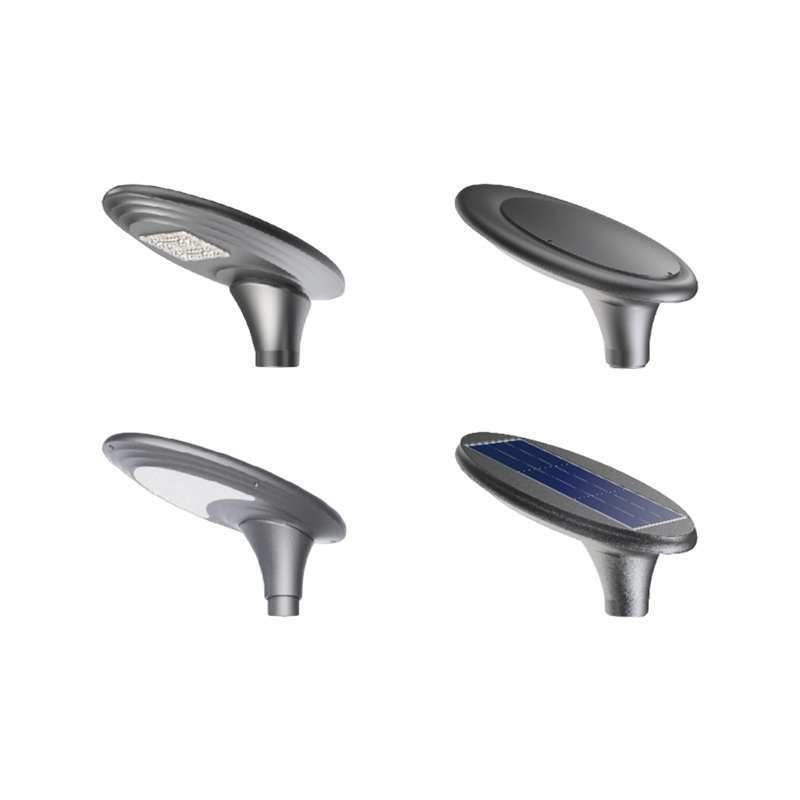

20W-80W 5V 277V Garden Lights

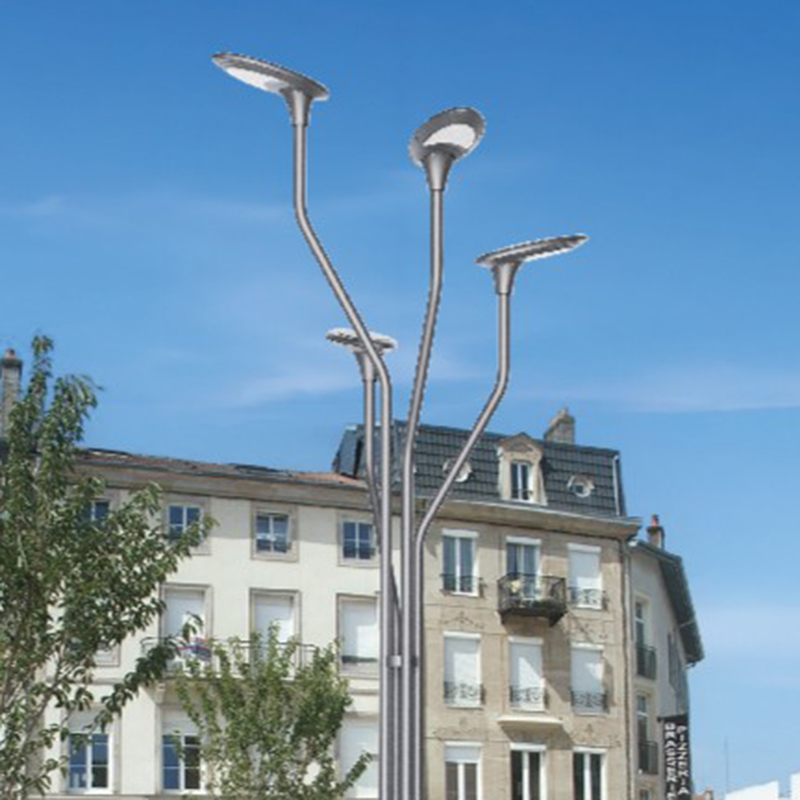

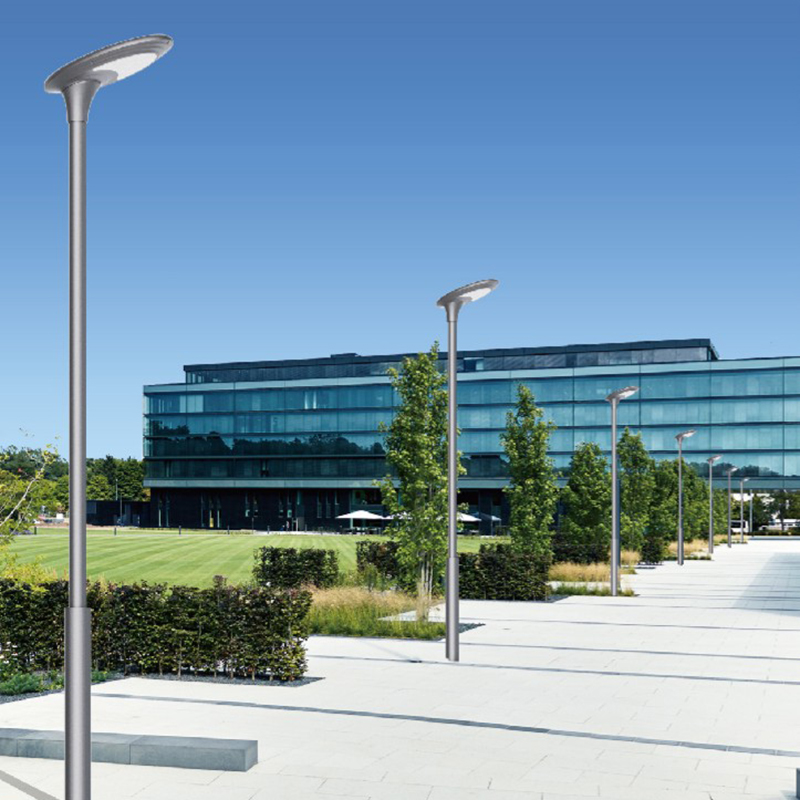

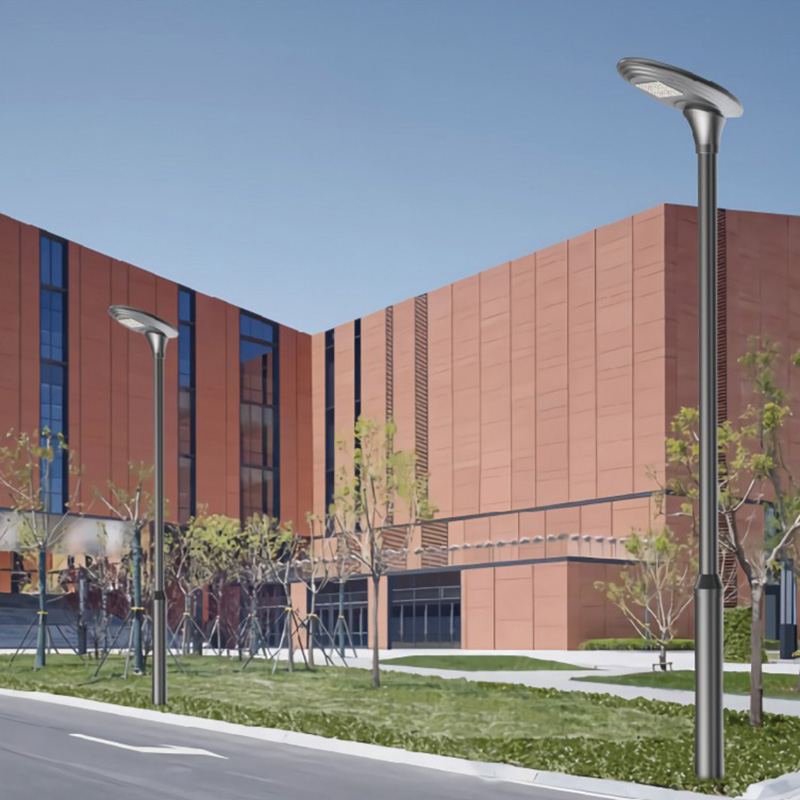

This garden light offers a wide power range, from 20W to 80W, and supports a wide voltage input, compatible with power supplies from 5V DC to 277V AC, adapting to different regional power grid standards. Constructed from die-cast aluminum, it features a highly transparent PC or glass cover and supports expansion with sensor or intelligent control modules. It's commonly used on public roads, in residential areas, and in industrial parks.

PREV：15W, 30W, 60W Garden Lights NEXT：30W-60W 3000K-6500K Black Round Garden Lights

Product Parameters

Modelnumber	SX-ZJ.DC-A	SX-ZJ.DC-B	SX-ZJ.AC-A	SX-ZJ.AC-B
Rated power	20-60W	20-40W	30-80W	30-60W
Input voltage	DC 5V	DC 5V	AC 100-277V	AC 100-277V
Type of light source	LUMILEDS、CREE	LUMILEDS、CREE	LUMILEDS、CREE	LUMILEDS、CREE
Solar panel	6V/17.3W	6V/17.3W	I	/
Frequency Range	/	/	50/60Hz	50/60Hz
Color temperature	3000K～6500K	3000K～6500K	3000K～6500K	3000K～6500K
Power Factor	/	/	>0.90	>0.90
CRI	≥Ra70	≥Ra70	≥Ra70	≥Ra70
Working temperature	-35~70℃	-35~70℃	-35~70℃	-35~70℃
Working humidity	10~90%	10~90%	10~90%	10~90%
LED lamp bead effect	150lm/W-170lm/W	120lm/W-150lm/W	160lm/W-190lm/W	140lm/W-160lm/W
LED Life	>50000H	>50000H	>50000H	>50000H
Waterproof grade	IP65	IP65	IP65	IP65
Installation pipe diameter	φ76mm	φ76mm	φ76mm	φ76mm
Installation height	3-4m	3-4m	3-4m	3-4m

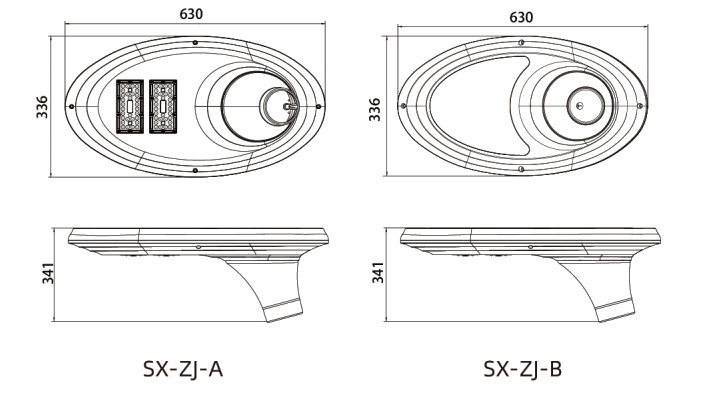

Lamp size	630×336×341mm	630×336×341mm	630×336×341mm	630×336×341mm
