15-20W 30-80W Garden Light 520*171mm Site

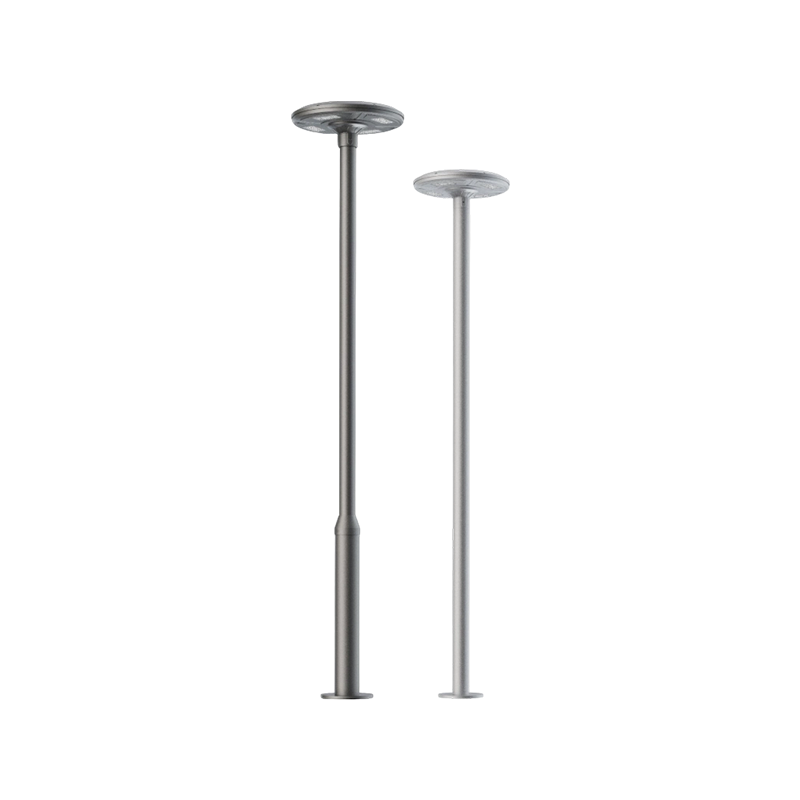

This ultra-thin garden light is only 171mm thick and has a front dimension of 520mm. It offers power ratings of 15-20W and 30-80W. Its slim design minimizes its presence, making it ideal for use around modern minimalist buildings, embedded in low walls, or in areas requiring low glare.

PREV：30W-60W Horse Racing Light NEXT：30W-80W Garden Lights 510*376mm 510*385mm Site

Product Parameters

Model number	SX-ZB.DC	SX-ZB.AC
Rated power	15W-20W	30W-80W
Input voltage	DC 5V-30v	AC100-305V
Type of light source	LUMILEDS、CREE	LUMILEDS、CREE
Solar panel	Efficient monocrystalline board：6V/17.3W	/
Frequency Range	/	50Hz-60Hz
Color temperature	/	>0.95
Power Factor	3000K～6500K	3000K～6500K
CRI	≥Ra70	≥Ra70
Working temperature	-35~70℃	-35~70℃
Working humidity	10~90%	10~90%
LED lamp bead effect	170lm/W	180lm/W
LED Life	>50000H	>50000H
Waterproof grade	IP65	IP65
Installation pipe diameter	φ76mm	φ76mm
Installation height	3~5m	3~5m

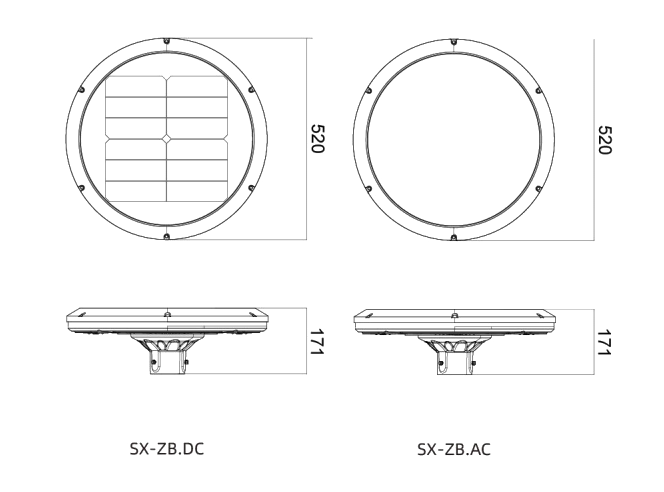

Lamp size	φ520×171mm	φ520×171mm
