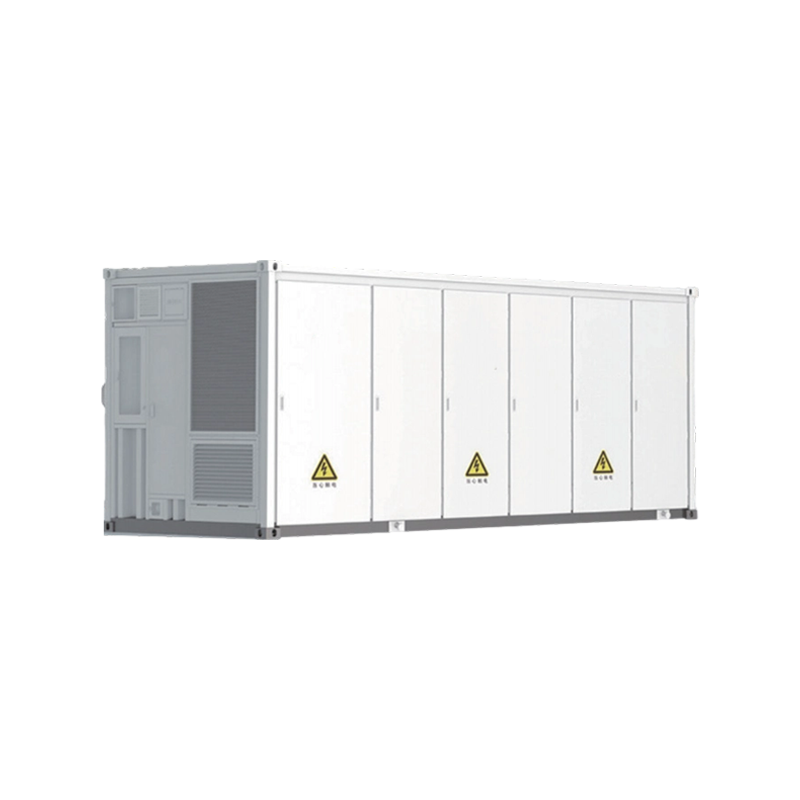

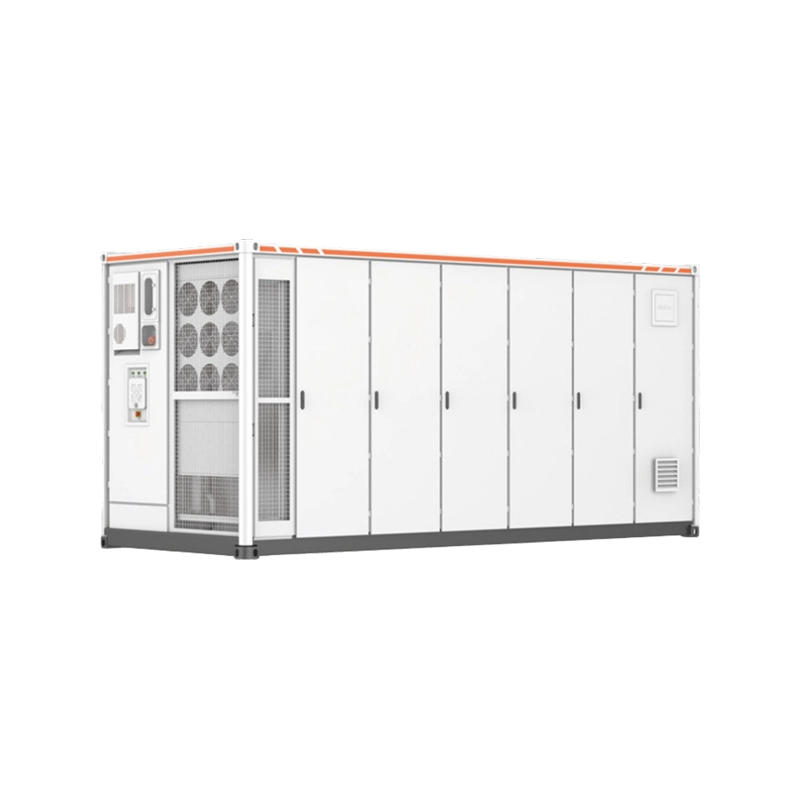

Gotion Grid - Energy Storage Battery Compartment

The Gotion Grid energy storage battery compartment (models include: ESD1331-05P5015, ESD1280-05P5068, ESD1126-05P2703, ESD1267-05P3421, and ESD1267-05P4561) is a modular containerized energy storage system. It utilizes lithium iron phosphate battery technology, offering high safety and a long cycle life. The system supports flexible configurations to accommodate varying capacity and power requirements, and integrates intelligent temperature control, fire protection, and energy management systems to ensure stable operation. It is suitable for a variety of applications, including grid peak shaving, renewable energy support, and industrial and commercial energy storage, providing reliable energy storage and dispatch support.

PREV：No previous article NEXT：No next article

Product Parameters

Specification	ESD1331-05P5015	ESD1280-05P5068
Electrical Parameters
Cell Capacity	314Ah	330Ah
Nominal Energy	5015.9kWh	5068.8kWh
Nominal Voltage	1331.2V	1280V
Recommended Operating Voltage Range	1164.8V~1497.6V	1120V~1440V
Maximum Charge/Discharge Rate	0.5P@25℃	0.5P@25℃
Maximum Charging Power	2507.9kW (0.5P)	2534.4kW (0.5P)
Environmental Parameters
Storage Temperature Range	-30℃~60℃
Operating Temperature Range	-30℃~45℃
Operating Humidity Range	≤95%
Altitude	<3000m
Coefficient Parameters
Protection Degree (IP Rating)	IP55
Thermal Management	Liquid Cooling
Communication Method	CAN, RS485, Ethernet
Communication Protocol	Modbus-TCP/IP
Fire Suppression System	PACK-Level Immersion Fire Suppression + Total Flooding Gas Fire Suppression + Water Fire Suppression
Compliant Standards*(Ongoing)	GB/T 36276, UL1973, UL9540, UL9540A, UN38.3, UN3536, IEC62477, IEC60730, IEC61000, IEC62619, NFPA855 Compliant
Structural Parameters
Dimensions (WDH)	6058mm2438mm2896mm
Weight	≈43t

Specification	ESD1126-05P2703	ESD1267-05P3421	ESD1267-05P4561
Electrical Parameters
Cell Capacity	100Ah	300Ah	300Ah
Nominal Energy	2703.3kWh	3421.4kWh	4561kWh
Nominal Voltage	1126V	1267V	1267V
Recommended Operating Voltage Range	985.6V~1267.2V	1108.8V~1425.6V	1108.8V~1425.6V
Maximum Charge/Discharge Rate	0.5P@25℃	0.5P@25℃	0.5P@25℃
Maximum Charging Power	1351.6kW (0.5P)	1710.7kW (0.5P)	2280kW (0.5P)
Environmental Parameters
Operating Temperature Range	-30~45℃
Operating Humidity Range	0~95%
Protection Degree (IP Rating)	IP54
Cooling Method	Air Cooling	Liquid Cooling	Liquid Cooling
Fire Suppression System	Heptafluoropropane / Perfluorohexanone
Altitude	<3000m
Communication Method
Communication Method	CAN, RS485, Ethernet
Compliant Standards	UL1973, UL9540A, IEC62619, UN38.3, IEC62477, IEC61000, IEC60730, IEC62933, GB/T 36276		UN38.3*, GB/T 36276
Structural Parameters
Dimensions (WDH)	6058mm2438mm2896mm
Weight	≈32t	≈37t	≈43t
