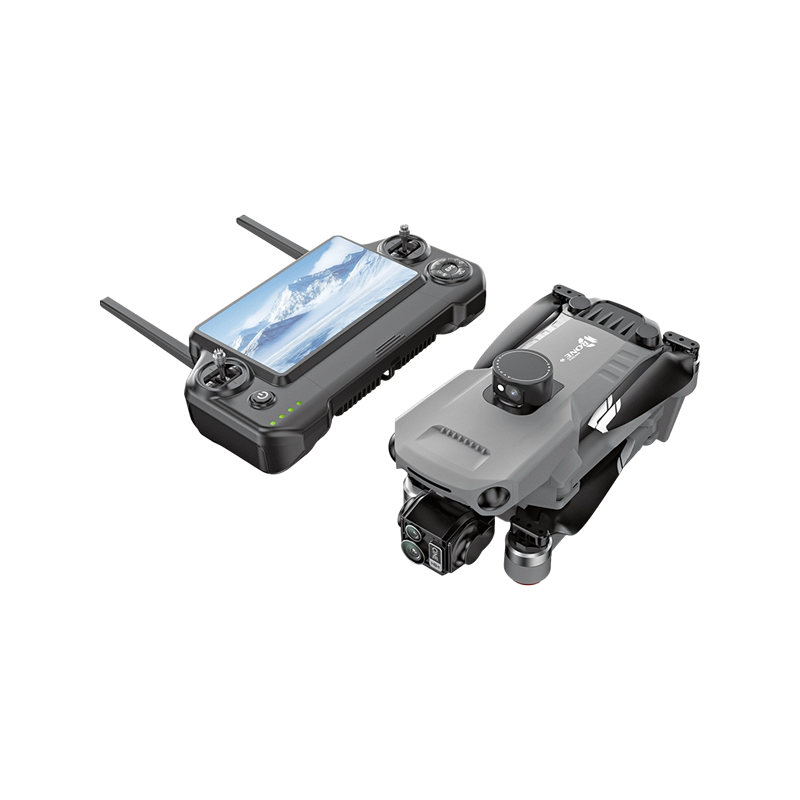

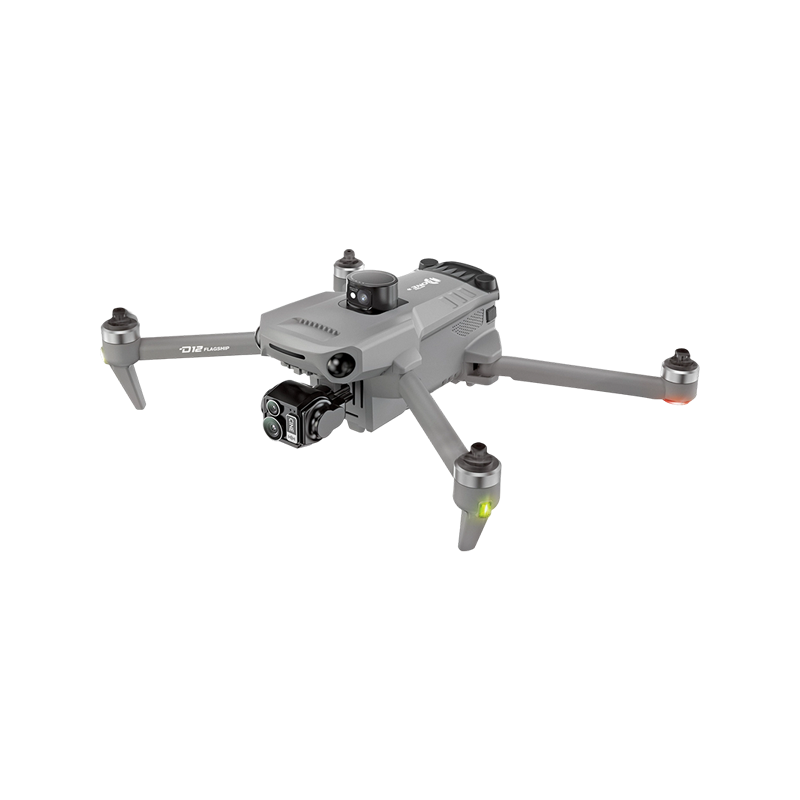

D12 7.2-Inch (Touch Screen) 4K Drone

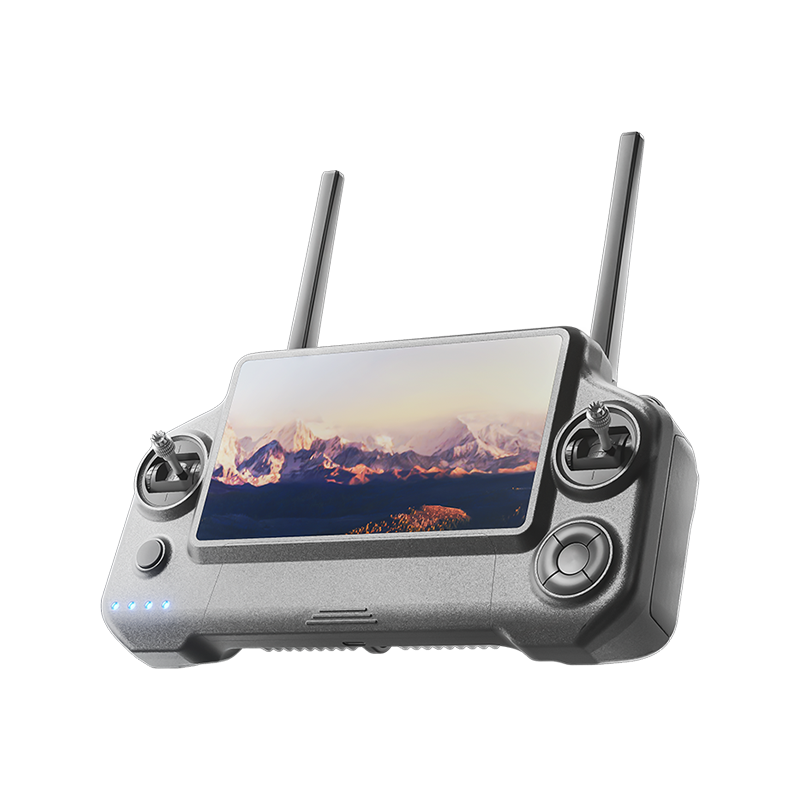

The D12 drone features a 7.2-inch integrated touchscreen remote controller with real-time display and parameter adjustment. It also features a 4K-resolution camera system capable of recording ultra-high-definition video and still photos. The flight platform integrates multiple sensors and is designed for aerial photography and image creation applications, offering a variety of automated flight modes suitable for photography and video capture in outdoor environments.

PREV：M88 Brushless Optical Flow Aerial Photography Drone NEXT：No next article

Product Parameters

Product Item Number	D12
Product Description	3-Axis Gimbal + Digital Image Transmission + Laser Obstacle Avoidance + Built-in Airdrop Device + Screen-Controlled Networking
Product Color	Black-Gray (Soft-Touch Paint)
Quantity per Carton	6 pcs/carton
Outer Carton Dimensions	54.538.564.5CM
Drone Dimensions	Folded: 2313.59.5CM / Unfolded: 49.537.59.5CM (including propellers)
Packaging Specifications	Backpack + Color Box
Color Box Dimensions	35.530.517.8CM
Backpack Dimensions	353017CM
Single Color Box Weight	2530g (including built-in obstacle avoidance module weight)
Drone Weight (without battery)	538g (including built-in obstacle avoidance module weight)
Drone Weight (with battery)	793.5g (including built-in obstacle avoidance module weight)
Single Battery Weight	255g
Data Remote Controller Weight	330g
Screen Remote Controller Weight	578g
Obstacle Avoidance Module Weight	55g
Weight Configuration	Standard: 2530g; Dual Batteries: 2785g; Triple Batteries: 3040g; Quadruple Batteries: 3295g
Versions	1. Screen-Controlled Version (No Obstacle Avoidance, Single Battery); 2. Additional Fast-Charging Battery; 3. Screen-Controlled Version (Lifting Obstacle Avoidance, Single Battery)
Operating Frequency	5G
Drone Battery	11.4V 4500mAh (Fast-Charging Battery, Actual Capacity 4700mAh)
Remote Controller Battery	7.4V 6000mAh Built-in Battery
Flight Time	40-46 minutes
Charging Time	Approximately 2 hours (Light flashes during charging, stays on when fully charged)
Remote Controller Charging Time	Approximately 2.5 hours
Screen Remote Controller Size	7.2 inches (Touch Screen)
Remote Controller Phone Clip Size (Max. Supported Phone Size)	Phone Holder Not Required for Screen-Controlled Version
Endurance Range / Control Distance (No Interference, No Obstacles)	Actual Digital Range: 6KM (Theoretical Max. 10KM)
Image Transmission Distance (No Interference, No Obstacles)	Actual Digital Range: 6KM (Theoretical Max. 10KM)
Wind Resistance Grade	Level 6-7
Flight Altitude	500M
Charging Method	USB Charging Cable
Lens Angle	110°
Digital Zoom Range	5x
Video Resolution	4K
Photo Resolution	76804320 (TF Card); 76804320 (APP)
Transmission Frame Rate	25-30 fps
Photo Format	JPEG
Video Format	MP4
Axis Count	3 Axes
Structural Design Range	Tilt: 110°; Roll: 45°; Yaw: 65°

Function introduction: three-axis mechanical stabilization gimbal+electronic stabilization and anti-shake+laser obstacle avoidance.

1. GPS one click return to takeoff point, low power return, no signal return.

2. ① GPS intelligent tracking; ② Image Follow: Identify the subject being photographed and perform automatic flight following.

3. Gesture shooting recognition: Within 1-3m of the aircraft, make a camera gesture/video gesture facing the camera.

4. Multi-point route planning flight: The aircraft flies autonomously according to the pre-set route, with players focusing on shooting and the screen system touching.

5. Fixed point surround: Find the center point of the surround and then move the desired surround radius with the joystick.

6. Aircraft retrieval function: Click the GPS signal icon three times in a row to open the map interface, which displays the last distance, latitude and longitude position of the aircraft.

7. Images can be shared with music and videos: single or multiple photos can be shared, while videos can only be shared individually at a time.

8. 4K adjustable camera (three-axis mechanical stabilization gimbal+electronic stabilization and anti shake+laser obstacle avoidance).

9. 11.4V plug-in intelligent lithium battery.
