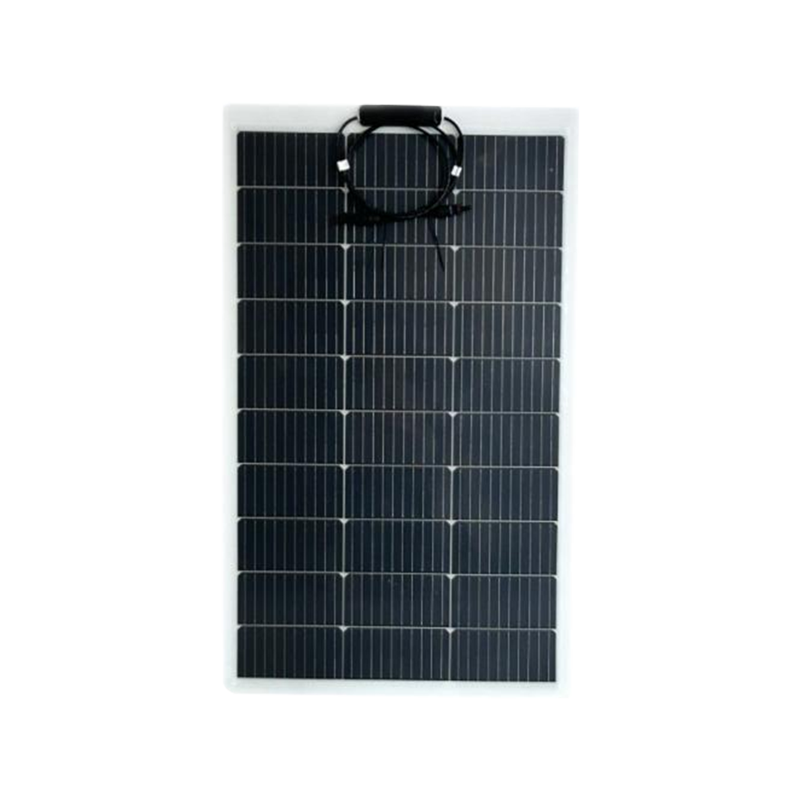

200W Semi-Flexible Solar Panels -- 12807802mm

This 200W semi-flexible solar panel measures 1280×780×2mm and utilizes monocrystalline silicon cells and a polymer composite material. It boasts excellent bending properties, with a maximum bend angle of 30 degrees, making it suitable for installation on curved surfaces. The panel is encapsulated with ETFE film, which offers high light transmittance, UV resistance, waterproofness, and corrosion resistance. Weighing approximately 2.5kg, it is easy to transport and install. It can operate in low-light conditions and is suitable for a variety of applications, including RVs, boats, and outdoor power supply. Made using a laminated process and without glass, the panel reduces the risk of breakage and enhances its adaptability for mobile use.

PREV：No previous article NEXT：200W Semi-Flexible Solar Panels -- 1570*680*2mm

Product Parameters

Model	SZ-200-MC
Rated power	200W
Maximum power current	6.64A
Maximum power voltage	30.16V
Open-circuit voltage	35.36V
Short-circuit current	7.03A
Maximum system voltage	200V
Output tolerance	0~+3%
Cable (MC4)	900mm/2.5mm²
Rated value of junction box	≥IP67
Solar cell	18291--134
Operating temperature	-20℃~+65℃
Module size	12807802mm
Weight (net weight/gross weight)	4.2/6.5kg
