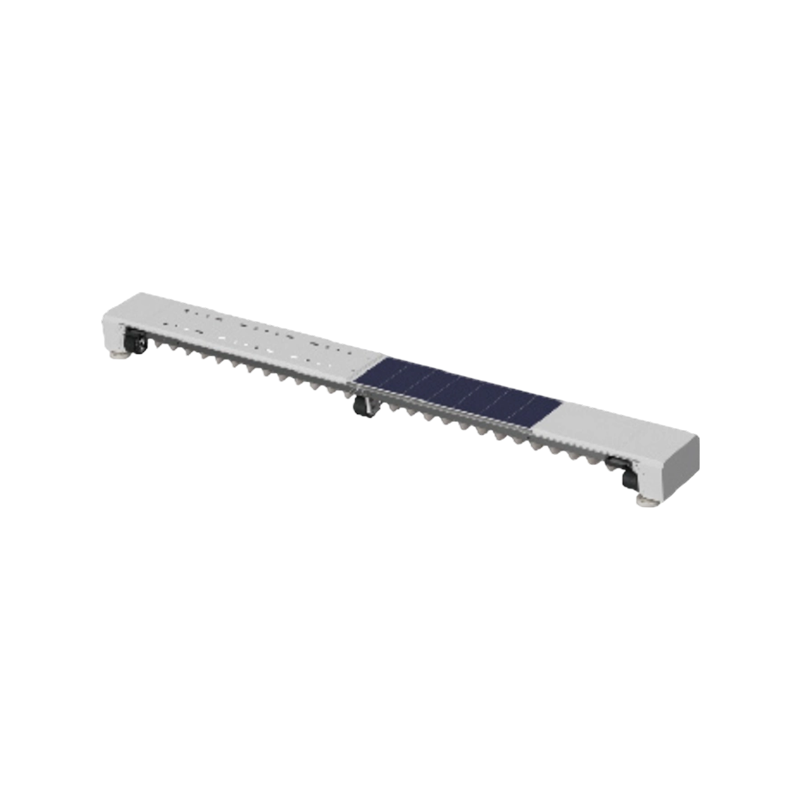

TLMax-PA Intelligent Operation and Maintenance Cleaning Robot

The TLMax-PA intelligent operation and maintenance cleaning robot is an automated cleaning device designed specifically for industrial and commercial environments. Integrating multi-sensor fusion technology, it features autonomous path planning and real-time obstacle avoidance, enabling stable operation in dynamic environments. Its cleaning system uses a combination of efficient roller brushes and vacuum suction to thoroughly remove particulate matter and dust. The robot supports scheduled tasks and remote monitoring, and can interact with building management systems. Its built-in lithium battery supports four hours of continuous operation and features automatic recharge and resumed cleaning. Suitable for scenarios such as data centers, warehousing and logistics, and large office spaces, it helps improve operation and maintenance efficiency and standardize cleaning.

PREV：TLMax-TR Flat Single-Axis Cleaning Robot NEXT：De'an S400 Intelligent Operation and Maintenance Cleaning Robot

Product Parameters

Parameter	Value
Robot Dimensions (Length × Width × Height)	(1950~7500) × 410 × 246 mm (millimeters)
Weight	≤ 60 Kg (Kilograms)
Travel Speed	0~12 m/min. (meters per minute)
Cleaning Brush Rotational Speed	≤ 100 r/min. (revolutions per minute)
Vertical Obstacle-climbing Capacity	25 mm (millimeters)
Horizontal Gap-crossing Capacity	40 mm (millimeters)
Slope-climbing Capacity	＜ 20° (degrees)
Usable Component Installation Angle	0~50° (degrees)
Maximum Cleaning Distance	2000 m (meters)
Removable Contaminants	Floating dust, iron filings, sand particles, etc.
Operating Temperature	-30℃ (Celsius) ~ 60℃ (Celsius)
Service Life	25 years
