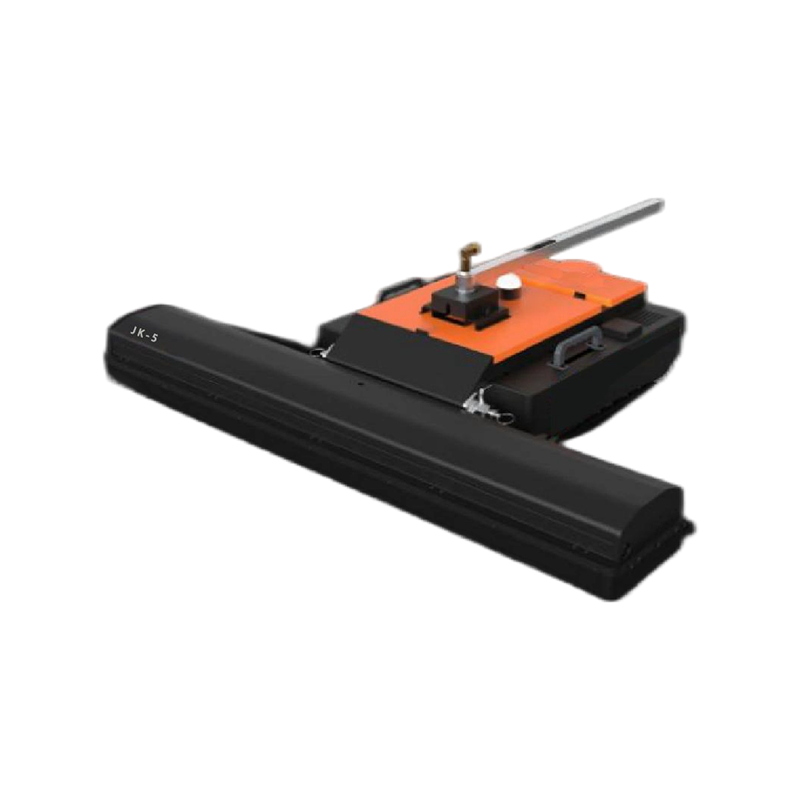

Remote Controlled Cleaning Robot JK-5

Product advantages:

1. High efficiency in panel cleaning
Operated by 2 people, a single robot can scan up to 1.5MW in high definition per day.

2. High cleanliness of the panel
Rinse with a large amount of water, achieving a panel cleanliness of 99%.

3. Lightweight and non-destructive panel
Through deep optimization of its own weight and lightweight structural design, its weight is controlled at 34Kg, and long-term operation without damage to the panel through third-party testing.

4. Modular design
The modular design of the equipment allows for quick disassembly and installation of the body, cleaning head, and battery, making it easy to transport, carry, and maintain the equipment.

PREV：Remote Controlled Cleaning Robot JK-6 NEXT：Photovoltaic Cleaning Robot JK-2

Product Parameters

Product Technical Parameters

Net weight of the whole machine	34Kg
Remote control distance	150m
Water output	4L/min (maximum 8.5L/min)
Battery parameters	25.2V25.6AH (ternary lithium battery)
Product size	840 * 1223 * 300mm
Roller brush length	330r/min

Cleaning ability

Cleaning efficiency: 1000m ²/h, with a daily cleaning capacity of approximately 1.5MW

Cleaning pollutants: floating ash, accumulated ash, combined with neutral cleaning agents to clean light and moderate oil stains

Equipment power supply

Full battery life: 4h, can quickly replace the backup battery

Charging time: 5h, battery removed for charging, compatible with European and Japanese standards

Operating conditions

Array tilt angle: 0-15.

Power station type: flat ground photovoltaic power station; Cement roof, color steel tile photovoltaic power station

Working environment

Environmental temperature: 5-30 ° C

Component temperature 5~50 ° C

Protection level: IP65

Homework period: Recommended for early morning, evening, cloudy, and rainy weather
