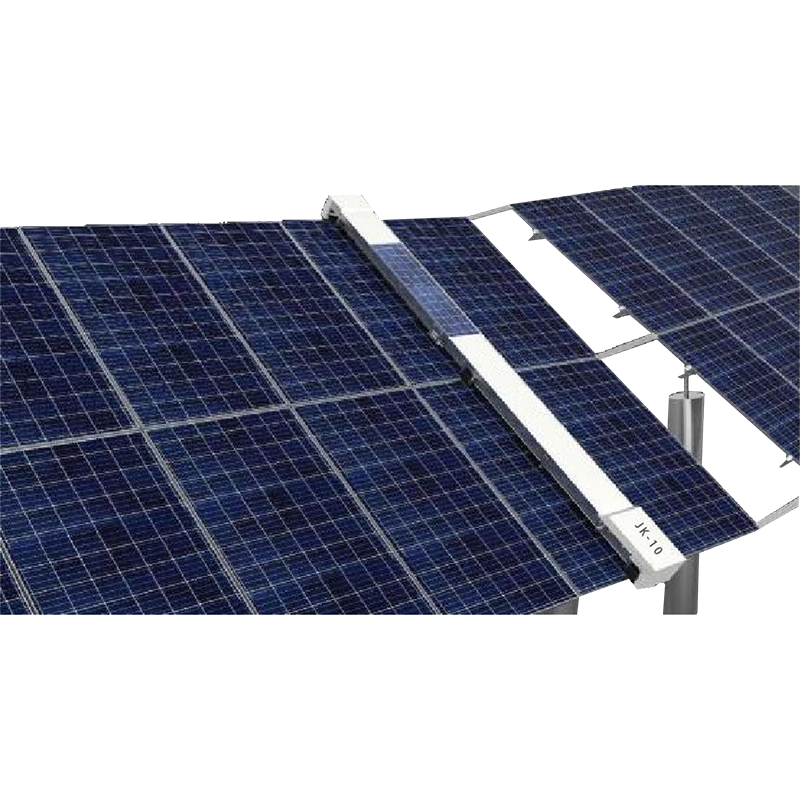

Railway Cleaning Robot JK-10

Product advantages:

1. Self-powered, 24/7 operation and maintenance
The self-powered photovoltaic panel is a charging control technology for equipment self-sufficiency, with 24-hour continuous power operation and maintenance.

2. Customizable battery life
Provide different battery capacities and endurance times according to actual needs.

3. C4 high anti-corrosion grade
Has strong anti-corrosion ability and can work in harsh environmental conditions for a long time.

4. Superb cleaning ability
It has a good dust cleaning effect, which is 8% higher than ordinary cleaning, and can increase power generation by up to 26%.

5. Large capacity batteries
Large capacity, high and low temperature resistant battery, with a maximum range of up to 2 kilometers.

6. Intelligent recognition technology
Intelligent recognition panel, bridge, and base station, autonomous positioning, and automatic correction.

PREV：Handheld Cleaning Robot JK-12 NEXT：Remote Controlled Cleaning Robot JK-7

Product Parameters

Product Technical Parameters

Equipment weight	70Kg (regular 4.6m version)
Power supply mode	self powered
Cleaning frequency	once a day
Walking speed	maximum 12m/min
Cleaning efficiency	99% (component surface floating dust accumulation)
Product size	4600 * 550 * 210 (length can be customized)

Unmanned and cleaning system

Reliable battery, management system

Remote fault diagnosis

High security

Cost-effective

Multiple independent and communication methods

Equipment power supply

Battery type: ternary lithium battery (customizable low-temperature battery)

Full battery life: customizable

Communication platform

Visualization platform: equipped with an APP monitoring platform

Communication methods: local, remote

Working environment

Operating environment temperature: -40 ℃ to +80 ℃

Protection level: IP65

Working humidity: 0-95% without condensation

Safe operating wind speed: 15m/s (level 7 wind)

Adaptability

Array tilt angle: 0-40°

Climbing ability: 10°

Component array obstacle crossing capability: high and low, front and rear misalignment not less than 30mm

Power station type: flat ground photovoltaic power station; Color steel tile power station

Fish light, complementary, and agricultural light, complementary photovoltaic power stations

Component type: Conventional aluminum frame component

Customizable extension functions

Connecting line breaks

Can be directly linked with shuttle buses,

Complete line break
