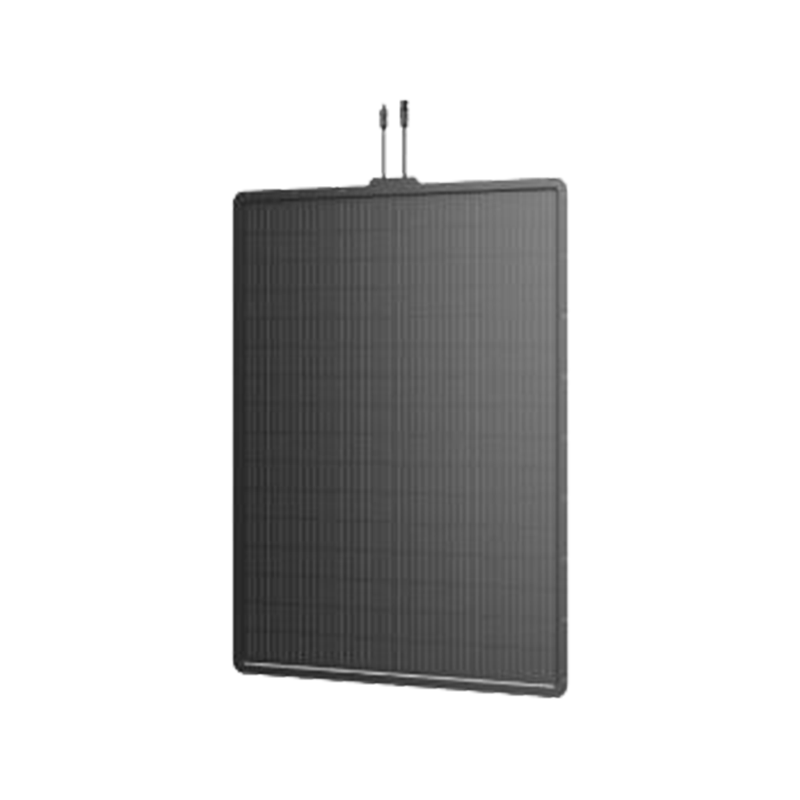

200W Balcony Semi-Flexible Solar Panels -- 133880016mm

This product is a 200W balcony semi-flexible solar panel, measuring 1338×800×16mm. It utilizes monocrystalline silicon cell technology and boasts high photovoltaic conversion efficiency. The panel is 16mm thick, resulting in a lightweight design suitable for installation in limited spaces, such as balconies.

The panel is covered with an ETFE film for UV and weather resistance, while the backplane is a polymer composite material that allows for slight bending, with a maximum bend angle of 30 degrees. This allows for installation at various angles and can conform to curved surfaces.

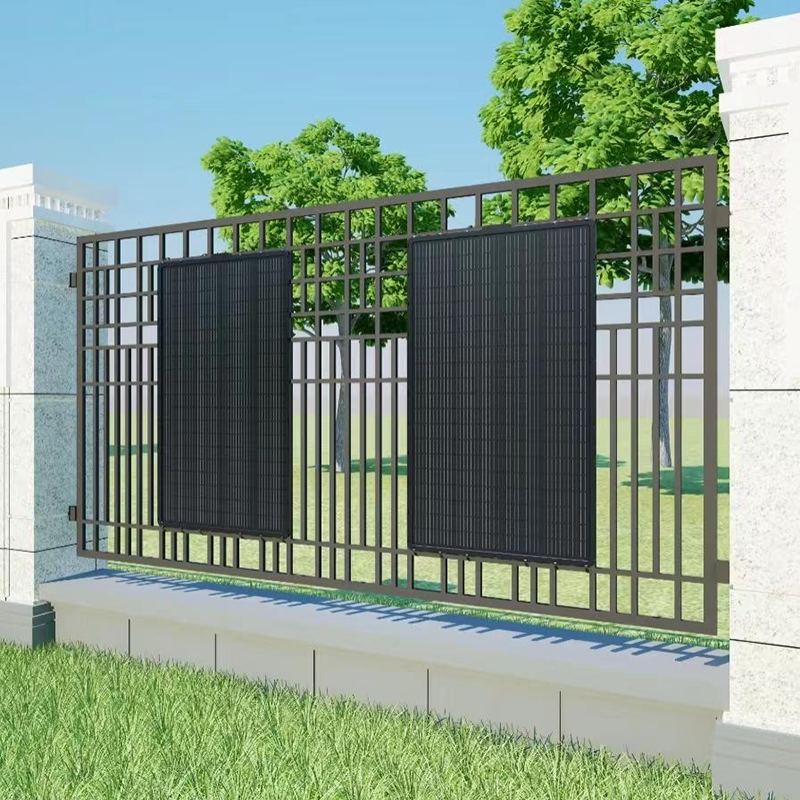

The standard operating voltage range is 18-22V, with a maximum system voltage of 1000V. The product has obtained international certifications such as TUV and CE, and operates in temperatures ranging from -40°C to +85°C, making it suitable for a variety of climates. It is suitable for residential balconies and small off-grid systems.

PREV：No previous article NEXT：150W Balcony Semi-Flexible Solar Panels -- 1088*800*16mm

Product Parameters

Model	SZ-200-MBC
Rated power	200W
Maximum power current	6.64A
Maximum power voltage	30.16V
Open-circuit voltage	35.36V
Short-circuit current	7.03A
Maximum system voltage	200V
Output tolerance	0~+3%
Cable (MC4)	900mm/2.5mm²
Rated value of junction box	≥IP67
Solar cell	18291--134
Operating temperature	-20℃~+65℃
Module size	133880016mm
Weight (net weight/gross weight)	5.017.0kg
