Energy Storage Device/AC Battery

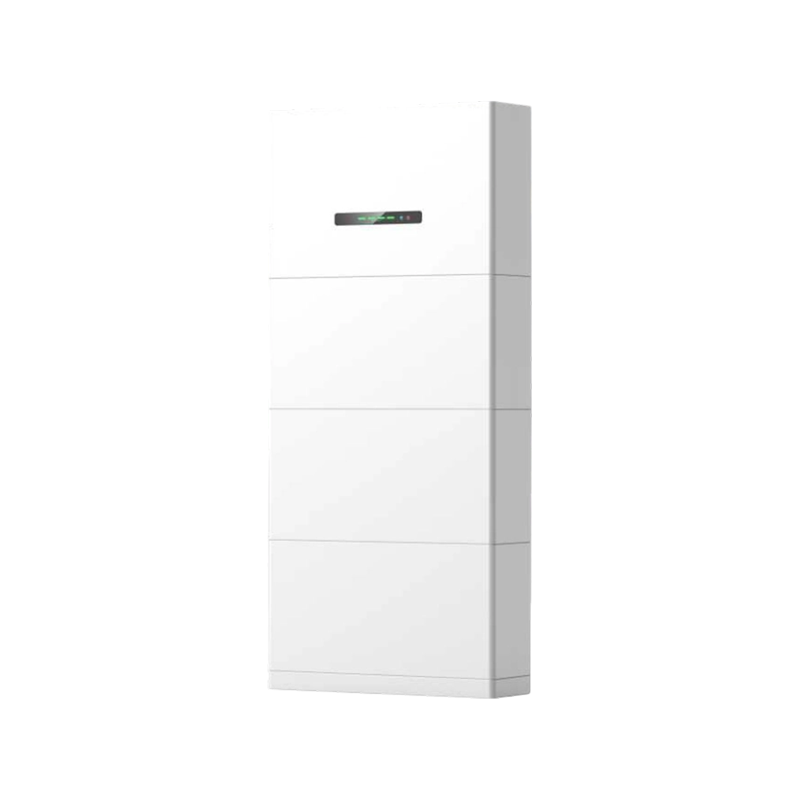

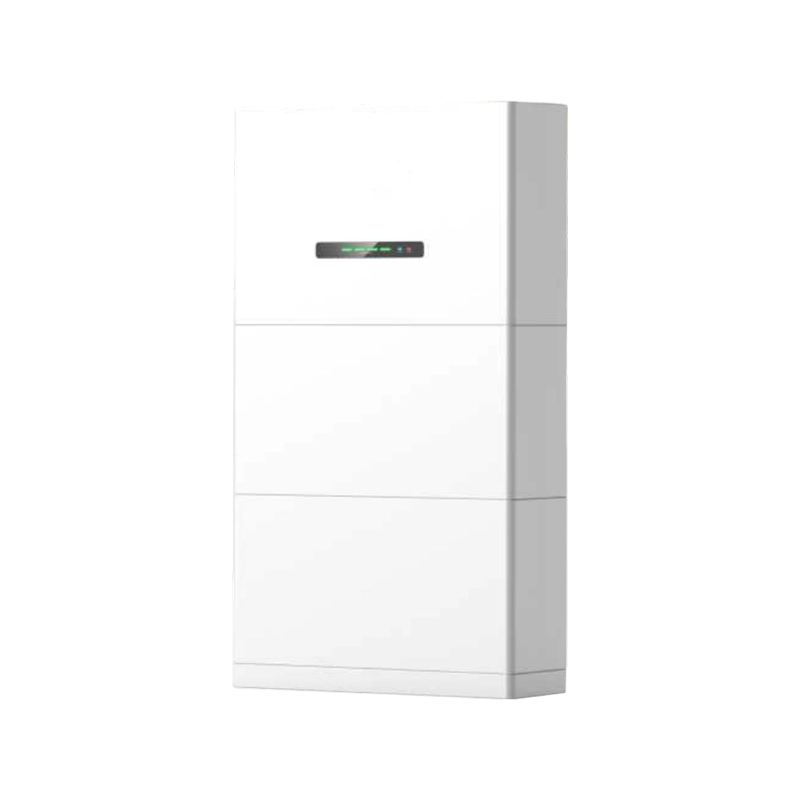

The HYX-H6K-HTA/HTAC, HYX-H9K-HTA/HTAC, HYX-H12K-HTA/HTAC, and HYX-H15K-HTA/HTAC are integrated energy storage/AC battery systems with rated capacities of 6kWh, 9kWh, 12kWh, and 15kWh, respectively. This product series features a modular design and supports parallel expansion to meet the power needs of different households. The system is capable of both off-grid and grid-connected operation, automatically switching to backup power during power outages. It features a built-in intelligent battery management system (BMS) with overcharge, over-discharge, and temperature protection. The AC-coupled design (HTAC model) is compatible with most existing PV inverters, while the DC model (HTA) is suitable for new PV systems. Integrated monitoring capabilities enable remote monitoring and management of power generation and consumption.

PREV：No previous article NEXT：No next article

Product Parameters

Specification	HYX-H6K-HTA/HTAC	HYX-H9K-HTA/HTAC	HYX-H12K-HTA/HTAC	HYX-H15K-HTA/HTAC
System
Inverter Module	1
Inverter Module Battery Module"	2	3	4	5
Battery Base	1
PV Side (Applicable only to HTA Series)

Maximum Input Power (Maximum Input Power per String)	160% of Rated 9,600W(3,200W/3,200W/3,200W)	160% of Rated 14,400W(4,800W/4,800W/4,800W)	160% of Rated 19,200W(6,400W/6,400W/6,400W)	160% of Rated 24,000W(8,000W/8,000W/8,000W)
Maximum Input Voltage	1,000V
MPPT Operating Voltage Range	140～980V
Startup Voltage	180V
Maximum Input Current	20A/40A
Maximum Short-Circuit Current	30A/60A
Number of MPPT Channels	2
"Number of PV Inputs (Number of Strings per MPPT Channel)"	3 (1/2)
AFCI	Equipped
AC Side
Rated Output Voltage	3/N/PE, 220V/380V, 230V/400V, 240V/415V
Frequency	50Hz/60Hz
Maximum Output Apparent Power	6,600VA	9,900VA	13,200VA	16,500VA
Power Factor	0.8 Leading ... 0.8 Lagging
THDi (Total Harmonic Distortion of Current)	<3%
Battery
Battery Type	Lithium Iron Phosphate (LiFePO₄)
Rated Battery Energy	10.6kWh	15.9kWh	21.2kWh	26.5kWh
Maximum Output Apparent Power	6,600W	9,900W	13,200W	16,500W
Peak Output Power	7,000W, 10s	10,500W, 10s	14,000W, 10s	17,500W, 10s
Switching Time	<10 ms
Basic Information
Operating Temperature Range	-20～50℃
AC/DC Lightning Protection	AC/DC I/II
Cooling Method	Natural Cooling
Protection Degree (IP Rating)	IP65
Dimensions (WHD)	7301372206mm	7301747206mm	7302122206mm	7302497206mm
Weight	152kg	202kg	252kg	302kg
Maximum Operating Altitude	4,000m
Noise Level	<30 dB
Display	LED / App / Web
Communication Method	CAN/RS485/WIFI/4G/LAN/PLC
